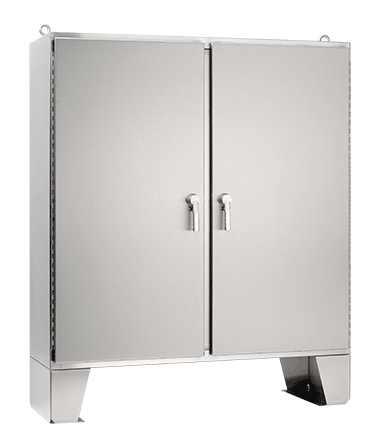

nVent HOFFMAN A74H7218SS6LP3PT A4S3 2-Door Enclosure, 74.06 in L x 72.06 in W x 18.06 in D, NEMA 3/3R/4/4X/12/13/IP66 NEMA Rating, 316 Stainless Steel

Short Description

These two-door enclosures provide industry-leading protection for large components or complex mounting configurations in highly corrosive environments. Three point latching with the Hoffman POWERGLIDE™ padlocking handles and a foam-in-place gasket combine convenience with security.

nVent HOFFMAN Enclosure, 2-Door, Series: A4S3, 74.06 in Length, 72.06 in Width, 18.06 in Depth, NEMA 3/3R/4/4X/12/13/IP66, 68 x 68 in Panel, Lock: 3-Point Latch, Floor Mount, 316 Stainless Steel, Brushed, White
MFG #: A74H7218SS6LP3PT

EECO #: HOA74H7218SS6LP3PT

Brand: nVent HOFFMAN
UPC #: 783510262235
Attributes
Features
Documents
Product Information
Attributes
Color
White
Finish
Brushed
Length
74.06
UNSPSC
39121324
Material
316 Stainless Steel
Application
Petrochemical Plants, Pulp and Paper Processing, Water Treatment Facilities and Food, Pharmaceutical and Packaging Applications
Mounting Type
Floor
Type
2-Door
Depth
18.06
Width
72.06
Series
A4S3
Panel Size
68 x 68
Features
  • Backs are 10 or 12 ga stainless steel with x-form stiffeners
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Removable center post permits easy panel installation
  • Heavy duty lifting eyes are 316L stainless steel
  • Heavy duty three-point latching mechanism operated by 316L stainless steel POWERGLIDE™ padlocking handle on all doors
  • Body flange trough collar excludes liquids and contaminants
  • Heavy duty stainless steel continuous hinges support each door
  • Bonding provision on door, grounding stud on body
  • Accessory mounting channel provided in enclosure top
  • Data pocket is high impact thermoplastic
  • 12 in removable floor stands are bolted to enclosure
  • Seamless foam in place one piece gasket provides oil-tight and dust tight seal against contaminants
  • External hardware manufactured of 316 stainless steel
