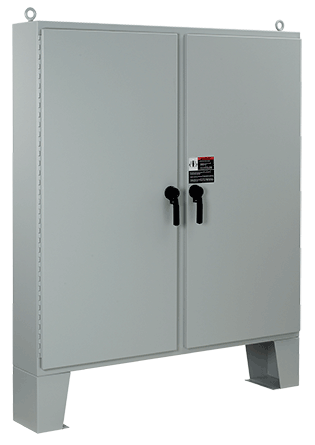

nVent HOFFMAN A74H7218LP3PT A4L3 2-Door Large Enclosure With Floor Stand, 74.06 in L x 72.06 in W x 18.06 in D, NEMA 3/4/IP66 NEMA Rating, Steel

Short Description

These enclosures are ideal for indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. The design features Hoffman's exclusive PowerGlide Handle with 3-point latching for secure closure and floor stands that provide additional height and access for cleaning under the enclosure.

nVent HOFFMAN Enclosure, 2-Door Large, Series: A4L3, 74.06 in Length, 72.06 in Width, 18.06 in Depth, NEMA 3/4/IP66, Continuous Hinged Cover, 68 in W x 68 in H Panel, Lock: 3-Point Latch/Padlock Handle, Floor Mount, Steel, Polyester Powder Painted, Gray
MFG #: A74H7218LP3PT

EECO #: HOA74H7218LP3PT

Brand: nVent HOFFMAN
UPC #: 783510238315
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
Length
74.06
UNSPSC
39121324
Material
Steel
Application
For indoor or outdoor applications where it is necessary to protect controls, instrumentation from wet and non-corrosive environments
Mounting Type
Floor
Type
2-Door Large
Depth
18.06
Width
72.06
Series
A4L3
Cover Type
Continuous Hinged
Panel Size
68 in W x 68 in H
Features
  • Three-point latch for security and ease of use
  • Return flange around the door opening excludes liquids and contaminants
  • Removable center post permits easy panel installation
  • 12 ga steel
  • Three-point latch system with POWERGLIDE™ padlocking handles
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Body stiffeners
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Data pocket is high impact thermoplastic
  • 12 in floor stands are welded to enclosure
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Oil-resistant door gasket
  • Grounding stud on body
  • Bonding provision on door
  • Provision for mounting fluorescent light
