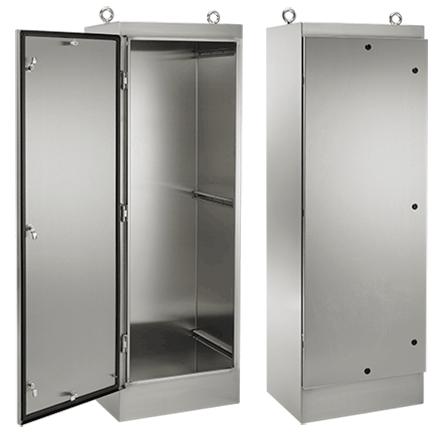

nVent HOFFMAN A72HS2418SSLPQT A4S2 1-Door Enclosure, 72.13 in L x 24.06 in W x 18.1 in D, NEMA 3R/4/4X/12/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A72HS2418SSLPQT A4S2 1-Door Enclosure, 72.13 in L x 24.06 in W x 18.1 in D, NEMA 3R/4/4X/12/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A72HS2418SSLPQT A4S2 1-Door Enclosure, 72.13 in L x 24.06 in W x 18.1 in D, NEMA 3R/4/4X/12/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A72HS2418SSLPQT A4S2 1-Door Enclosure, 72.13 in L x 24.06 in W x 18.1 in D, NEMA 3R/4/4X/12/IP66 NEMA Rating, 304 Stainless Steel
Share Share Print Print
nVent

nVent HOFFMAN A72HS2418SSLPQT A4S2 1-Door Enclosure, 72.13 in L x 24.06 in W x 18.1 in D, NEMA 3R/4/4X/12/IP66 NEMA Rating, 304 Stainless Steel

Short Description

This single-door stainless steel enclosure with quarter turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments.

nVent HOFFMAN Enclosure, 1-Door, Series: A4S2, 72.13 in Length, 24.06 in Width, 18.1 in Depth, NEMA 3R/4/4X/12/IP66, 60 x 20 in Panel, Lock: Quarter Turn Latch, Freestanding Mount, 304 Stainless Steel, Painted, White
MFG #: A72HS2418SSLPQT

EECO #: HOA72HS2418SSLPQT

Brand: nVent HOFFMAN
UPC #: 783510191658
Attributes
Features
Documents
Product Information
Attributes
Color
White
Finish
Painted
Length
72.13
UNSPSC
39121324
Material
304 Stainless Steel
Application
Pharmaceutical, Food and Beverage, Packaging, Water, Petroleum, Chemical Processing Industries and General Purpose Applications
Mounting Type
Freestanding
Type
1-Door
Depth
18.1
Width
24.06
Series
A4S2
Panel Size
60 x 20
Features
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam in place single-piece gasket provides water, oil and dust tight seal against contaminants
  • Black die cast quarter-turn latches with slotted insert provided on three sides of door
  • Concealed stainless steel hinges provide 180 deg door opening and allow easy door removal and cleaning of hinge area
  • Heavy duty 316L stainless steel lifting eyes
  • Internal accessory mounting channels welded horizontally to sides at top, bottom and center
  • Bonding provision on door, grounding stud on body
  • Accessory mounting channel provided in enclosure top
