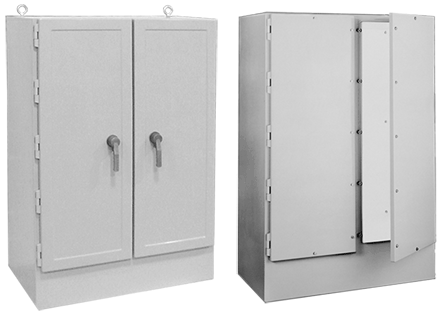

nVent HOFFMAN A724925FG A17 2-Door Enclosure, 72 in L x 49 in W x 24-1/2 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass
nVent HOFFMAN A724925FG A17 2-Door Enclosure, 72 in L x 49 in W x 24-1/2 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass
nVent HOFFMAN A724925FG A17 2-Door Enclosure, 72 in L x 49 in W x 24-1/2 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass
nVent HOFFMAN A724925FG A17 2-Door Enclosure, 72 in L x 49 in W x 24-1/2 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass
Share Share Print Print
nVent

nVent HOFFMAN A724925FG A17 2-Door Enclosure, 72 in L x 49 in W x 24-1/2 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass

Short Description

An economical way to house electronics in corrosive environments, two-door enclosures provide easy access to equipment, larger capacity for control systems and steel reinforcements that ensure stability and strength. These enclosures feature captivated door screws and an optional PowerGlide Handle for secure latching.

nVent HOFFMAN Enclosure, 2-Door, Series: A17, 72 in Length, 49 in Width, 24-1/2 in Depth, NEMA 4X/IP66, Hinged Cover, 22 in W x 56 in H Panel, Lock: 3-Point Latch, Freestanding Mount, Fiberglass, Gel Coated, Gray
MFG #: A724925FG

EECO #: HOA724925FG

Brand: nVent HOFFMAN
UPC #: 783510267407
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Gel Coated
Length
72
UNSPSC
39121324
Material
Fiberglass
Application
For economical way to house electronics in corrosive environments
Mounting Type
Freestanding
Type
2-Door
Depth
24-1/2
Width
49
Series
A17
Cover Type
Hinged
Panel Size
22 in W x 56 in H
Features
  • fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Epoxy vinyl ester material can be requested instead for protection against extremely corrosive chemical environments
  • Seams are sealed, no holes or knockouts
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Models have either a three-point latching system with handle or stainless steel captivated door screws
  • Type 316 stainless steel POWERGLIDE™ handle on handle versions
  • Stainless steel captivated door screws on screw versions
  • Gasket assures watertight and dusttight seal
  • Solid center post (not removable) has heavy gauge stiffener
  • Heavy duty type 316 stainless steel lifting eyes
  • Hinges are corrosion-resistant fiberglass with type 316 stainless steel hinge pins
  • Molded in angular sealing flange directs water away from gasket area
