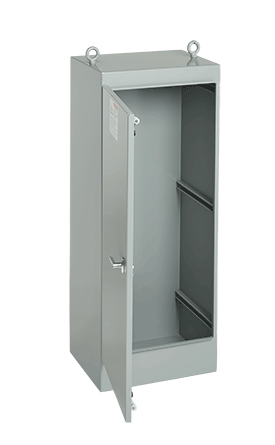

nVent HOFFMAN A723630FSG A30 1-Door 1-Access Enclosure, 72.06 in L x 36.06 in W x 30.06 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A723630FSG A30 1-Door 1-Access Enclosure, 72.06 in L x 36.06 in W x 30.06 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A723630FSG A30 1-Door 1-Access Enclosure, 72.06 in L x 36.06 in W x 30.06 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A723630FSG A30 1-Door 1-Access Enclosure, 72.06 in L x 36.06 in W x 30.06 in D, NEMA 12/IP55 NEMA Rating, Steel
Share Share Print Print
nVent

nVent HOFFMAN A723630FSG A30 1-Door 1-Access Enclosure, 72.06 in L x 36.06 in W x 30.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Short Description

Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options.

nVent HOFFMAN Enclosure, 1-Door 1-Access, Series: A30, 72.06 in Length, 36.06 in Width, 30.06 in Depth, NEMA 12/IP55, Freestanding Mount, Steel, Polyester Powder Painted, Gray

MFG #: A723630FSG

EECO #: HOA723630FSG

Brand: nVent HOFFMAN
UPC #: 783510385897
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
Length
72.06
UNSPSC
39121324
Material
Steel
Mounting Type
Freestanding
Type
1-Door 1-Access
Depth
30.06
Width
36.06
Series
A30
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stiffeners on back of 2-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling, three-point latches operated by oiltight keylocking handle
  • Three-point latches operated by oiltight keylocking handle
  • Concealed, easy to remove hinges
  • Data pockets are high impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting fluorescent light
IDW_DOCUMENT_6fd9c4fc72479d8cb85137c143238fe864b95a3232fc96fd37ccbb84e0f67cc8
Hoffman_A604818FSDG_Installation_Instructions
IDW_DOCUMENT_1558b1a6239c5ecb8314013d2e23f2403b64d7dbdda4172fd85ed6a6eda564af
Qty Unit price
Ea
1 $2,974.00
