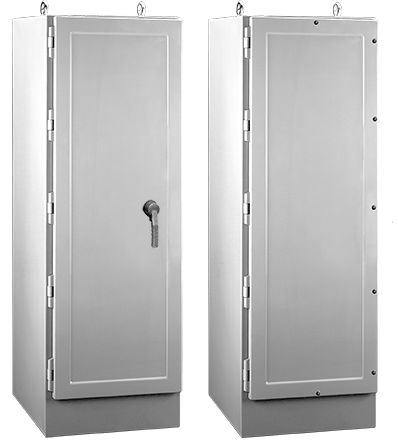

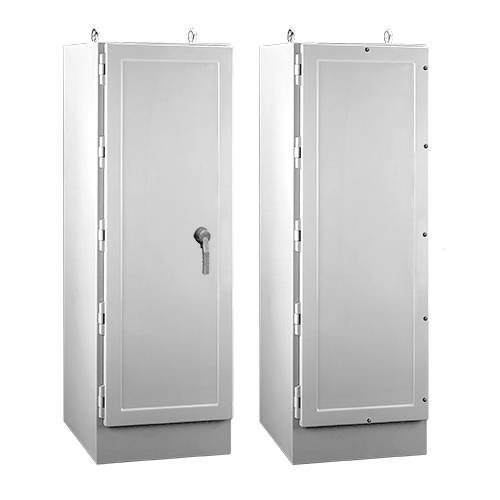

nVent HOFFMAN A722525FGFS3PT A17 1-Door Enclosure, 72 in L x 25 in W x 24-1/2 in D, NEMA 4X NEMA Rating, Fiberglass
nVent HOFFMAN A722525FGFS3PT A17 1-Door Enclosure, 72 in L x 25 in W x 24-1/2 in D, NEMA 4X NEMA Rating, Fiberglass
nVent HOFFMAN A722525FGFS3PT A17 1-Door Enclosure, 72 in L x 25 in W x 24-1/2 in D, NEMA 4X NEMA Rating, Fiberglass
nVent HOFFMAN A722525FGFS3PT A17 1-Door Enclosure, 72 in L x 25 in W x 24-1/2 in D, NEMA 4X NEMA Rating, Fiberglass
Share Share Print Print
nVent

nVent HOFFMAN A722525FGFS3PT A17 1-Door Enclosure, 72 in L x 25 in W x 24-1/2 in D, NEMA 4X NEMA Rating, Fiberglass

Short Description

An economical housing for corrosive environments, single-door, free-stand enclosures provide a versatile solution for applications that require flexibility when mounting panels and racks. Benefits include easy access to equipment, larger capacity for control systems, steel reinforcements for stability and strength, captivated door screws and an optional PowerGlide Handle for secure latching.

nVent HOFFMAN Enclosure, 1-Door, Series: A17, 72 in Length, 25 in Width, 24-1/2 in Depth, NEMA 4X, Hinged Cover, Freestanding Mount, Fiberglass, Gel Coated, Gray
MFG #: A722525FGFS3PT

EECO #: HOA722525FGFS3PT

Brand: nVent HOFFMAN
UPC #: 783510468897
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Gel Coated
Length
72
UNSPSC
39121324
Material
Fiberglass
Application
For corrosive environments
Mounting Type
Freestanding
Type
1-Door
Depth
24-1/2
Width
25
Series
A17
Cover Type
Hinged
Features
  • fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Epoxy vinyl ester material can be requested instead for protection against extremely corrosive chemical environments
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Models have either a three-point latching system with handle or stainless steel captivated door screws
  • Gasket assures watertight and dusttight seal
  • Heavy duty type 316 stainless steel lifting eyes
  • Accessory mounting channels attached horizontally to interior body sides at top, bottom and center
  • Panels and rack mounting angles can be mounted anywhere along corner channels, panels can be mounted on sides or back
  • Hinges are corrosion-resistant fiberglass with type 316 stainless steel hinge pins
  • Large, high impact thermoplastic data pocket
  • Molded in angular sealing flange directs water away from gasket area
  • Material is halogen-free
