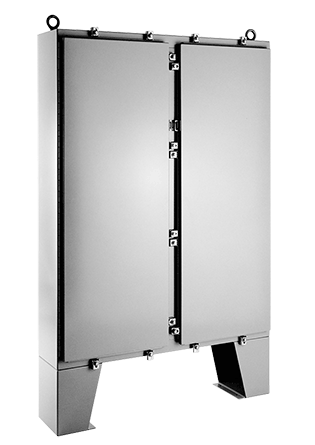

nVent HOFFMAN A62H48CLP A4L 2-Door Large Enclosure With Floor Stand, 62.06 in L x 48.06 in W x 10.06 in D, NEMA 4/IP66 NEMA Rating, Steel

Short Description

The type 4 rating and polyester powder coating make these enclosures ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Featuring a continuous hinge with clamps, the enclosures are supported by floor stands that provide additional height and access for cleaning under the enclosure. Equipment can be mounted on either panels or racks.

nVent HOFFMAN Enclosure, 2-Door Large, Series: A4L, 62.06 in Length, 48.06 in Width, 10.06 in Depth, NEMA 4/IP66, Continuous Hinged Cover, 15 in W x 15 in H Panel, Lock: Hasp and Staple/Padlock, Floor Mount, Steel, Polyester Powder Painted, Gray
MFG #: A62H48CLP

EECO #: HOA62H48CLP

Brand: nVent HOFFMAN
UPC #: 783510264000
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
Length
62.06
UNSPSC
39121324
Material
Steel
Application
For outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments
Mounting Type
Floor
Type
2-Door Large
Depth
10.06
Width
48.06
Series
A4L
Cover Type
Continuous Hinged
Panel Size
15 in W x 15 in H
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Body stiffeners for added strength
  • Removable center post permits easy panel installation
  • Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
  • Stainless steel door clamps on three sides of each door assure watertight seal
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Hasp and staple is provided for padlocking
  • Data pocket is high impact thermoplastic
  • 12 in floor stands are welded to enclosure
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Oil-resistant door gasket
  • Grounding stud on body
  • Bonding provision on door
  • Provision for mounting fluorescent light
  • 12 ga steel
