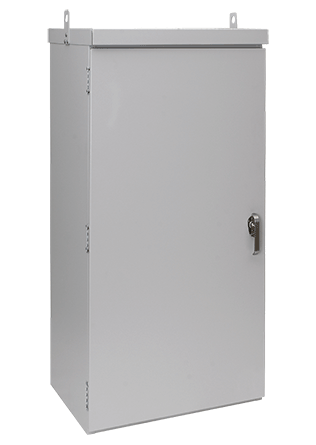

nVent HOFFMAN WEATHERPRO™ A60R2524FSLP A3PM 1-Door Enclosure, 60 in L x 25 in W x 24 in D, NEMA 3R/IP32 NEMA Rating, Steel

Short Description

WeatherPro Outdoor Pad Mount Enclosures protect controls, drives, power distribution components or contactors in outdoor commercial or industrial power distribution and control applications. The overlapping two-door models with no center post allow full-width access to enclosure interior.

nVent HOFFMAN WEATHERPRO™ Enclosure, 1-Door, Series: A3PM, 60 in Length, 25 in Width, 24 in Depth, NEMA 3R/IP32, Bolt-On/Hinged Cover, 21.5 in W x 49.16 in H Panel, Lock: 3-Point Latch/Padlock Handle, Freestanding/Pad Mount, Steel, Polyester Powder Painted, Light Gray
MFG #: A60R2524FSLP

EECO #: HOA60R2524FSLP

Brand: nVent HOFFMAN
UPC #: 783510144135
Attributes
Features
Documents
Product Information
Attributes
Color
Light Gray
Finish
Polyester Powder Painted
Length
60
UNSPSC
39121324
Material
Steel
Application
For protection of controls, drives, power distribution components or contactors in outdoor commercial or industrial power distribution and control applications
Mounting Type
Freestanding/Pad
Type
1-Door
Depth
24
Width
25
Series
A3PM
Cover Type
Bolt-On/Hinged
Panel Size
21.5 in W x 49.16 in H
Features
  • Three-point latching system with heavy duty handle
  • Padlock provision in handle
  • Open bottom with pre-punched mounting hole flange
  • Drip edge overhang on top
  • Louvered overhang with a closure plate
  • Welded body construction
  • Sturdy 7 ga lifting tabs
  • Overlapping doors with no center post on two door models
  • Bonding provision on each door
  • Bolted hinges on doors
  • 14 ga galvanized steel
