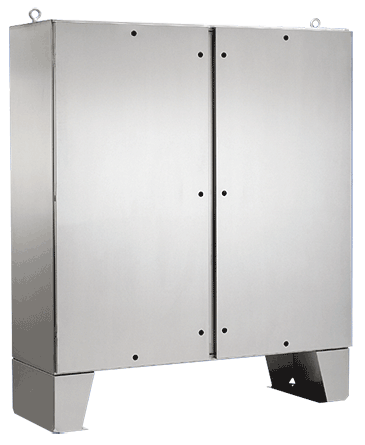

nVent HOFFMAN A60H6018SSLPQT A4S2 2-Door Enclosure With Floor Stand, 60.06 in L x 60.06 in W x 18.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A60H6018SSLPQT A4S2 2-Door Enclosure With Floor Stand, 60.06 in L x 60.06 in W x 18.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A60H6018SSLPQT A4S2 2-Door Enclosure With Floor Stand, 60.06 in L x 60.06 in W x 18.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A60H6018SSLPQT A4S2 2-Door Enclosure With Floor Stand, 60.06 in L x 60.06 in W x 18.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Share Share Print Print
nVent

nVent HOFFMAN A60H6018SSLPQT A4S2 2-Door Enclosure With Floor Stand, 60.06 in L x 60.06 in W x 18.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

This two-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries.

nVent HOFFMAN Enclosure, 2-Door, Series: A4S2, 60.06 in Length, 60.06 in Width, 18.06 in Depth, NEMA 4X/IP66, Concealed Hinged Cover, 56 in W x 56 in H Panel, Lock: Quarter Turn Latch, Freestanding Mount, 304 Stainless Steel, Unpainted
MFG #: A60H6018SSLPQT

EECO #: HOA60H6018SSLPQT

Brand: nVent HOFFMAN
UPC #: 783510137182
Attributes
Features
Documents
Product Information
Attributes
Finish
Unpainted
Length
60.06
UNSPSC
39121324
Material
304 Stainless Steel
Application
Food and Beverage, Packaging, Water, Petroleum and Chemical Processing Industries Applications
Mounting Type
Freestanding
Type
2-Door
Depth
18.06
Width
60.06
Series
A4S2
Cover Type
Concealed Hinged
Panel Size
56 in W x 56 in H
Features
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam in place one-piece gasket provides water, oil and dust tight seal against contaminants
  • Black die cast quarter-turn latches with slotted insert provided on three sides of door
  • Concealed hinges provide 180 deg door opening and allow easy door removal and cleaning of hinge area
  • Bolt-on 12 in high stainless steel floor stands
  • Heavy duty type 316L stainless steel lifting eyes
  • Removable center post for easy panel installation
  • Bonding provisions on doors and ground studs on body
  • Data pocket is high impact plastic attached with pressure sensitive adhesive
  • No interior stiffeners to obstruct component mounting
  • Accessory mounting channel provided in enclosure top
  • 14 ga doors and 12 ga body from type 304 stainless steel
