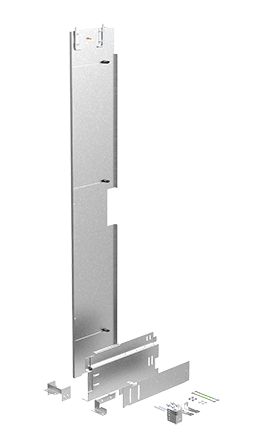

nVent HOFFMAN A60BP18G PNLFS Universal Barrier Panel, 17.8 in W x 59.8 in H, Mild Steel
Share Share Print Print
nVent

nVent HOFFMAN A60BP18G PNLFS Universal Barrier Panel, 17.8 in W x 59.8 in H, Mild Steel

Short Description

The universal barrier panel provides a type 1 solution to help reduce the risk of electrical hazards such as electrical shock or arc flash by adding a physical barrier inside an enclosure to separate the high voltage from the low voltage components. Designed to fit in unibody free stand or floor mount enclosures with center post, the barrier helps minimize the incidental contact or exposure to high voltage components while accessing the low voltage equipment such as controls and programming devices.

nVent HOFFMAN Barrier Panel, Universal, Series: PNLFS, 17.8 in Width, 59.8 in Height, For Use With: A21, A28M2, A28MM, A4L3D, A4L3, A4L, A21S4, A28S4, A4S2, A4S3 and A4SL Series 60 in H x 18 in D Free Stand/Floor Mount Enclosure with Centerpost, Mild Steel, Galvanized
MFG #: A60BP18G

EECO #: HOA60BP18G

Brand: nVent HOFFMAN
UPC #: 783510384081
Attributes
Features
Documents
Product Information
Attributes
Finish
Galvanized
UNSPSC
39121334
Material
Mild Steel
Application
For unibody free-stand or floor mount enclosures with centerpost, the barrier helps minimize the incidental contact or exposure to high voltage components while accessing the low voltage equipment such as controls and programming devices
Type
Universal
Width
17.8
Height
59.8
Series
PNLFS
Includes
Mounting Hardware and Bracket
Suitable For Use With
A21, A28M2, A28MM, A4L3D, A4L3, A4L, A21S4, A28S4, A4S2, A4S3 and A4SL Series 60 in H x 18 in D Free Stand/Floor Mount Enclosure with Centerpost
Features
  • Meet UL type 1 construction requirements when installed in an nVent HOFFMAN enclosure
  • Top and bottom barrier plates included to provide a full depth separation
  • Main barrier plate has a 6 in extender to add flexibility when mounting
  • Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
  • Ground stud on the main barrier plate
  • Mount to the welded or removable center post of an enclosure, the barrier panel cannot be installed in free stand or floor mount enclosures without a center post
IDW_DOCUMENT_0ae03e04b178e42a5070e04fa5a2420639b664db62c385243537892cfa8959f0
IDW_DOCUMENT_6fd9c4fc72479d8cb85137c143238fe864b95a3232fc96fd37ccbb84e0f67cc8
nVent_HOFFMAN_A60BP12_Manual
