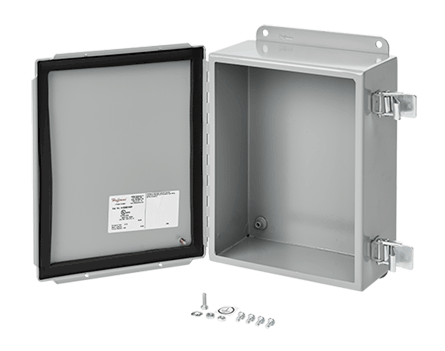

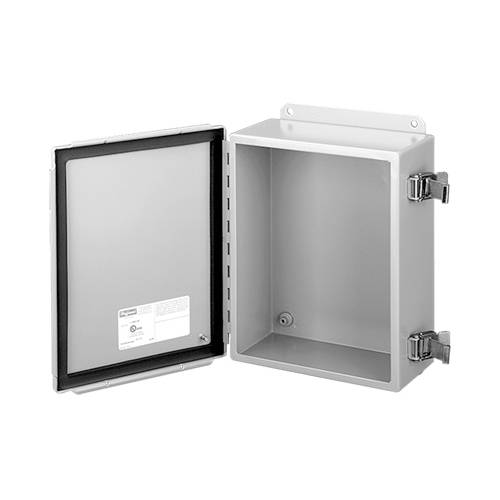

nVent HOFFMAN A604CHQR A51 Junction Box, 6 in H x 4 in W x 3 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
nVent HOFFMAN A604CHQR A51 Junction Box, 6 in H x 4 in W x 3 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
nVent HOFFMAN A604CHQR A51 Junction Box, 6 in H x 4 in W x 3 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
nVent HOFFMAN A604CHQR A51 Junction Box, 6 in H x 4 in W x 3 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
Share Share Print Print
nVent

nVent HOFFMAN A604CHQR A51 Junction Box, 6 in H x 4 in W x 3 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel

Short Description

A continuous hinge door with quick-release flip latches provides convenient access to enclosed components in a wide variety of applications.

nVent HOFFMAN Junction Box, Series: A51, 6 in Height, 4 in Width, 3 in Depth, NEMA 12/IP65 NEMA Rating, Continuous Hinged Cover, 4.88 x 2.88 in Panel, Lock: Quick-Release Latch, Wall Mounting, Steel, Polyester Powder Painted, Gray
MFG #: A604CHQR

EECO #: HOA604CHQR

Brand: nVent HOFFMAN
UPC #: 783510568306
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
UNSPSC
39121303
Material
Steel
Application
Used to provide convenient access to enclosed components in a wide variety of applications
Mounting Type
Wall
Depth
3
Width
4
Height
6
Series
A51
Cover Type
Continuous Hinged
Panel Size
4.88 x 2.88
Features
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External welded on mounting brackets for easy installation
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits
