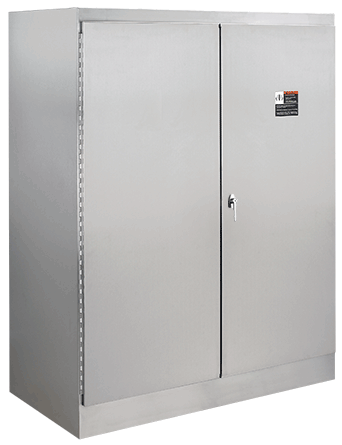

nVent HOFFMAN A604818SSFSD A30S 2-Door Enclosure, 60.06 in L x 48.06 in W x 18.06 in D, NEMA 12/IP55 NEMA Rating, 304 Stainless Steel

Short Description

Designed to house systems incorporating large components or complex mounting configurations. Three point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19 in rack mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments.

nVent HOFFMAN Enclosure, 2-Door, Series: A30S, 60.06 in Length, 48.06 in Width, 18.06 in Depth, NEMA 12/IP55, Lock: 3-Point Latch/Keyed, Freestanding Mount, 304 Stainless Steel, Brushed
MFG #: A604818SSFSD

EECO #: HOA604818SSFSD

Brand: nVent HOFFMAN
UPC #: 783510845308
Attributes
Features
Documents
Product Information
Attributes
Finish
Brushed
Length
60.06
UNSPSC
39121324
Material
304 Stainless Steel
Application
Automotive, Pulp and Paper, Wood Products, Textile and Similar Industries Applications
Mounting Type
Freestanding
Type
2-Door
Depth
18.06
Width
48.06
Series
A30S
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stiffeners welded to back of enclosures maintain flatness and increase rigidity
  • Heavy duty lifting eyes are 316 stainless steel
  • Plated steel three-point latching and keylocking handle
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Data pocket, provided on door with 3-point latches, is high impact thermoplastic
  • Mounting channels welded horizontally to interior body sides at top, bottom and center
  • Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips
  • Bonding provision on door, grounding stud on body
  • Accessory mounting channel provided in enclosure top
