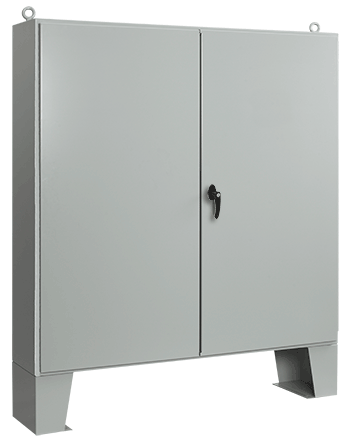

nVent HOFFMAN A604808LP 2-Door Enclosure, 60.06 in L x 48.06 in W x 8.06 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A604808LP 2-Door Enclosure, 60.06 in L x 48.06 in W x 8.06 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A604808LP 2-Door Enclosure, 60.06 in L x 48.06 in W x 8.06 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A604808LP 2-Door Enclosure, 60.06 in L x 48.06 in W x 8.06 in D, NEMA 12/IP55 NEMA Rating, Steel
Share Share Print Print
nVent

nVent HOFFMAN A604808LP 2-Door Enclosure, 60.06 in L x 48.06 in W x 8.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Short Description

Enclosures have gasketed, overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure. Because there is no centerpost, it is simple to install and remove panels.

nVent HOFFMAN Enclosure, 2-Door, 60.06 in Length, 48.06 in Width, 8.06 in Depth, NEMA 12/IP55, Continuous Hinged Cover, 56 x 44 in Panel, Lock: 3-Point Latch, Floor Mount, Steel, Powder Painted, Gray
MFG #: A604808LP

EECO #: HOA604808LP

Brand: nVent HOFFMAN
UPC #: 783510265007
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Powder Painted
Length
60.06
UNSPSC
39121307
Material
Steel
Application
For overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure
Mounting Type
Floor
Type
2-Door
Depth
8.06
Width
48.06
Cover Type
Continuous Hinged
Panel Size
56 x 44
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Gasketed overlapping doors with no center post
  • Three-point latch mechanism operated by oiltight key lock handle
  • Latch rod rollers for easy door closing
  • Concealed, easy to remove hinges
  • Data pocket is high impact thermoplastic
  • Bonding provision on door
  • Provision for mounting fluorescent light
  • A60P48 conductive panel
  • A60P48G conductive panel
  • 15 in stiffener
  • 12 ga steel
  • 10 ga panel
  • Enclosures have gasketed, overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure, because there is no center post, it is simple to install and remove panels
