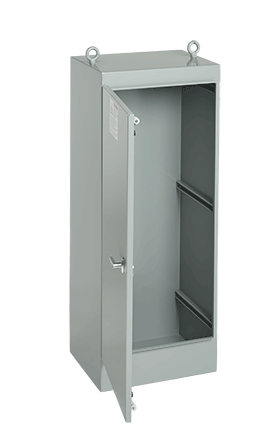

nVent HOFFMAN A603624FSG A30 1-Door Single Access Enclosure, 60.06 in L x 36.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel
Share Share Print Print
nVent

nVent HOFFMAN A603624FSG A30 1-Door Single Access Enclosure, 60.06 in L x 36.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Short Description

Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options.

nVent HOFFMAN Enclosure, 1-Door Single Access, Series: A30, 60.06 in Length, 36.06 in Width, 24.06 in Depth, NEMA 12/IP55, Concealed Hinged Cover, Lock: 3-Point Latch/Keyed Handle, Freestanding Mount, Steel, Polyester Powder Painted, Gray
MFG #: A603624FSG

EECO #: HOA603624FSG

Brand: nVent HOFFMAN
UPC #: 783510385194
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
Length
60.06
UNSPSC
39121324
Material
Steel
Mounting Type
Freestanding
Type
1-Door Single Access
Depth
24.06
Width
36.06
Series
A30
Cover Type
Concealed Hinged
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stiffeners on back of 2-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • Three-point latches operated by oiltight keylocking handle
  • Concealed, easy to remove hinges
  • Data pockets are high impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting fluorescent light
  • 12 ga steel
