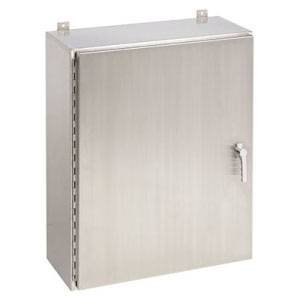

36 x 30 x 10, Hoffman A36H3010SSLP3PT Wall Mount Enclosure, NEMA 3R/4/4X/12/13/IP66, 304 Stainless Steel, 1-Door, Continuous Hinged
Share Share Print Print
nVent

36 x 30 x 10, Hoffman A36H3010SSLP3PT Wall Mount Enclosure, NEMA 3R/4/4X/12/13/IP66, 304 Stainless Steel, 1-Door, Continuous Hinged

Short Description

36" x 30" x 10", NEMA 3R/4/4X/12/13, IP66, 14 Gauge 304 Stainless Steel, 1-Door, Wall Mount Enclosure with Continuous Hinged and 3-Point Latch

Wall Mount Enclosure; Type 1-Door; Height 36 Inch; Width 30 Inch; Depth 10 Inch; Material 304 Stainless Steel; Material Specification 14 Gauge; Finish #4 Smooth Brushed (Door/Side/Top/Bottom), Electropolished (Handle); Cover Type Continuous Hinged, Stainless Steel Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, 3-Point Latch, 316L Stainless Steel Padlockable Powerglide Handle; Back Panel A36P30, A36P30G; Enclosure NEMA 3R/4/4X/12/13, IP66; Mounting Wall; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Large High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A36H3010SSLP3PT

EECO #: HOA36H3010SSLP3PT

Brand: Hoffman
UPC #: 783510143169
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed (Door/Side/Top/Bottom), Electropolished (Handle)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
304 Stainless Steel
Back Panel
A36P30, A36P30G
Nema Rating
NEMA 3R/4/4X/12/13, IP66
Service Type
Indoor/Outdoor
Mounting
Wall
Material Specification
14 Gauge
Type
1-Door
Depth
10 Inch
Width
30 Inch
Height
36 Inch
Cover Type
Continuous Hinged, Stainless Steel Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, 3-Point Latch, 316L Stainless Steel Padlockable Powerglide Handle
Features
  • Seams Continuously Welded and Ground Smooth
  • Rolled Lip Around Three Sides of Door
  • Seamless Foam-In-Place Gasket
  • Internal 3-Point Latch and Type 316L Stainless Steel Padlocking POWERGLIDE Handle
  • Bonding Provisions on Door
  • Grounding Studs on Body
  • Enclosures Feature Hoffman's Exclusive POWERGLIDE Handle with 3-Point Latching, Ideal for Indoor or Outdoor Applications that Require Corrosion Protection, Convenient Access and Padlocking Security
  • RoHS/Reach Compliant
nVent_Hoffman_00080_166_167_CAT
nVent_Hoffman_00121_1_2_SPEC
nVent_Hoffman_00286_INST
Qty Unit price
Ea
1 $3,668.00

Slqt
1 $3,668.00

Stpk
1 $3,668.00

Unit
1 $3,668.00
