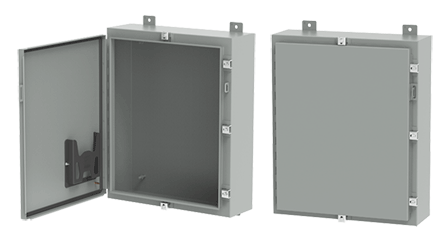

nVent HOFFMAN A36H24ALP A4 Series 1-Door Enclosure, 36 in L x 24 in W x 6 in D, NEMA 4/IP66 NEMA Rating, Steel
nVent HOFFMAN A36H24ALP A4 Series 1-Door Enclosure, 36 in L x 24 in W x 6 in D, NEMA 4/IP66 NEMA Rating, Steel
nVent HOFFMAN A36H24ALP A4 Series 1-Door Enclosure, 36 in L x 24 in W x 6 in D, NEMA 4/IP66 NEMA Rating, Steel
nVent HOFFMAN A36H24ALP A4 Series 1-Door Enclosure, 36 in L x 24 in W x 6 in D, NEMA 4/IP66 NEMA Rating, Steel
Share Share Print Print
nVent

nVent HOFFMAN A36H24ALP A4 Series 1-Door Enclosure, 36 in L x 24 in W x 6 in D, NEMA 4/IP66 NEMA Rating, Steel

Short Description

These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.

nVent HOFFMAN Enclosure, 1-Door, Series: A4 Series, 36 in Length, 24 in Width, 6 in Depth, NEMA 4/IP66, Clamp/Continuous Hinged Cover, 21 in W x 33 in H Panel, Lock: Hasp and Staple/Padlock, Wall Mount, Steel, Polyester Powder Painted, Gray
MFG #: A36H24ALP

EECO #: HOA36H24ALP

Brand: nVent HOFFMAN
UPC #: 783510244002
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
Length
36
UNSPSC
39121324
Material
Steel
Application
Indoor/Outdoor Applications
Mounting Type
Wall
Type
1-Door
Depth
6
Width
24
Series
A4 Series
Warranty
1 Year
Cover Type
Clamp/Continuous Hinged
Panel Size
21 in W x 33 in H
Features
  • The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications
  • 16 or 14 ga steel
  • Seams continuously welded and ground smooth
  • External wall mounting brackets for easy installation
  • Formed external flanges around all sides of enclosure opening
  • Stainless steel door clamps on three sides of door
  • Removable heavy gauge stainless steel continuous hinge pin
  • Removable door with continuous hinge for strength and ruggedness
  • Hasp and staple is provided for padlocking
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
