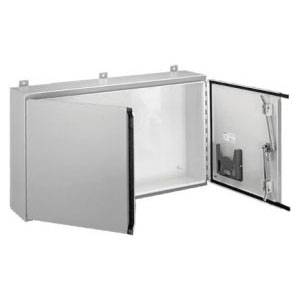

36 x 60 x 12, Hoffman A366012WFLP Wall Mount Enclosure, NEMA 12/IP55, Mild Steel, 2-Door, Continuous Hinged

Short Description

36" x 60" x 12", NEMA 12, IP55, 14 Gauge White Inside/ANSI 61 Gray Outside Mild Steel, External Welded-On Bracket Mount, 2-Door, Wall Mount Enclosure with Continuous Hinged/3-Point Latch and Key Locking Handle

Wall Mount Enclosure; Type 2-Door; Height 36 Inch; Width 60 Inch; Depth 12 Inch; Material Mild Steel; Material Specification 14 Gauge; Color White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door); Cover Type Continuous Hinged, Heavy Gauge Continuous Hinge Pin, 3-Point Latch and Key Locking Handle, Oil Resistant Gasketed; Back Panel A60P36, A60P36G; Enclosure NEMA 12, IP55; Mounting Wall, External Welded-On Bracket; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Handle, High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A366012WFLP

EECO #: HOA366012WFLP

Brand: Hoffman
UPC #: 783510271800
Attributes
Features
Documents
Product Information
Attributes
Color
White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Mild Steel
Back Panel
A60P36, A60P36G
Nema Rating
NEMA 12, IP55
Mounting
Wall, External Welded-On Bracket
Material Specification
14 Gauge
Type
2-Door
Depth
12 Inch
Width
60 Inch
Height
36 Inch
Cover Type
Continuous Hinged, Heavy Gauge Continuous Hinge Pin, 3-Point Latch and Key Locking Handle, Oil Resistant Gasketed
Features
  • Seams Continuously Welded and Ground Smooth
  • External Welded-On Mounting Brackets for Easy Installation
  • External Formed Body Flange Channels Away Liquid
  • Gasketed Overlapping Door Eliminate Need for Center Post
  • Oil-Resistant Gasket
  • Bonding Provision on Both Doors
  • RoHS/Reach Compliant
Qty Unit price
Ea
1 $2,085.00

Slqt
1 $2,085.00

Stpk
1 $2,085.00

Unit
1 $2,085.00
