36 x 48 x 12, Hoffman A364812WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, Continuous Hinge w/Removable Pin
36 x 48 x 12, Hoffman A364812WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, Continuous Hinge w/Removable Pin
36 x 48 x 12, Hoffman A364812WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, Continuous Hinge w/Removable Pin
36 x 48 x 12, Hoffman A364812WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, Continuous Hinge w/Removable Pin
Share Share Print Print
nVent

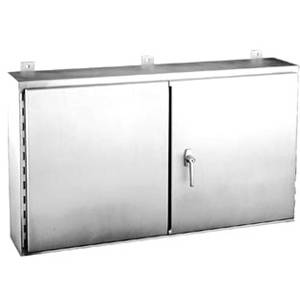

36 x 48 x 12, Hoffman A364812WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, Continuous Hinge w/Removable Pin

Short Description

36" x 48" x 12", NEMA 12, IP55, #4 Smooth Brushed, 14 Gauge 304 Stainless Steel, Continuous Hinge with Removable Pin, 3-Point Latch and Key Locking Handle, Gasketed Cover, 2-Door, Wall Mount Enclosure

Wall Mount Enclosure; Type 2-Door; Height 36 Inch; Width 48 Inch; Depth 12 Inch; Material 304 Stainless Steel; Material Specification 14 Gauge; Finish #4 Smooth Brushed; Cover Type Continuous Hinge with Removable Pin, 3-Point Latch and Key Locking Handle, Gasketed; Back Panel A48P36; Enclosure NEMA 12, IP55; Mounting External Bracket, Wall; Service Type Indoor; Approval UL 508A, CUL, CSA C22.2; RoHS Compliant; Includes High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A364812WFSSLP

EECO #: HOA364812WFSSLP

Brand: Hoffman
UPC #: 783510840204
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Service Type
Indoor
Mounting
External Bracket, Wall
Material Specification
14 Gauge
Type
2-Door
Features
  • Seams Continuously Welded and Ground Smooth
  • Rolled Lip Around All Sides of Enclosure Body Opening
  • Collar Studs Provided for Mounting Optional Panels
  • Bonding Provision on Door
  • Grounding Studs on Body
  • RoHS Compliant
