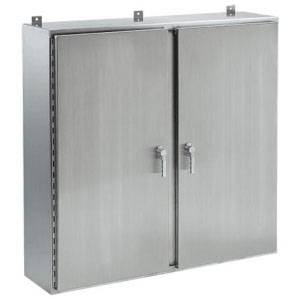

30 x 48 x 10, Hoffman A30H4810WFSSLP3PT Wall Mount Enclosure, NEMA 3/3R/4/4X/12/13/IP66, 304 Stainless Steel, 2-Door, Continuous Hinged
Share Share Print Print
nVent

30 x 48 x 10, Hoffman A30H4810WFSSLP3PT Wall Mount Enclosure, NEMA 3/3R/4/4X/12/13/IP66, 304 Stainless Steel, 2-Door, Continuous Hinged

Short Description

30" x 48" x 10", NEMA 3/3R/4/4X/12/13, IP66, 14 Gauge #4 Smooth Brushed 304 Stainless Steel, 2-Door, Wall Mount Enclosure with Continuous Hinged and 3-Point Latch

Wall Mount Enclosure; Type 2-Door; Height 30 Inch; Width 48 Inch; Depth 10 Inch; Material 304 Stainless Steel; Material Specification 14 Gauge, 12 Gauge (Panel); Finish #4 Smooth Brushed; Cover Type Continuous Hinged, 3-Point Latch; Back Panel A48P30, A48P30G; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Mounting Wall; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A30H4810WFSSLP3PT

EECO #: HOA30H4810WFSSLP3PT

Brand: Hoffman
UPC #: 783510145231
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
304 Stainless Steel
Back Panel
A48P30, A48P30G
Nema Rating
NEMA 3/3R/4/4X/12/13, IP66
Mounting
Wall
Material Specification
14 Gauge, 12 Gauge(Panel)
Type
2-Door
Depth
10 Inch
Width
48 Inch
Height
30 Inch
Cover Type
Continuous Hinged, 3-Point Latch
Features
  • Seams Continuously Welded and Ground Smooth
  • Removable Centerpost for Easy Panel Installation
  • Flange Trough Collar Around All Sides of Enclosure Door Openings
  • External Mounting Brackets
  • Easily Removable Doors by Pulling Heavy Gauge Continuous Hinge Pin
  • Data Pocket is High Impact Thermoplastic
  • Seamless Foam in Place Gasket
  • Bonding Provisions on Door
  • Grounding Studs on Body
  • RoHS/Reach Compliant
nVent_Hoffman_00008_INST
nVent_Hoffman_00080_174_175_CAT
nVent_Hoffman_00128_1_2_SPEC
