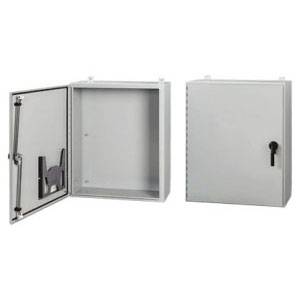

30 x 24 x 8, Hoffman A30H24BLP3PT Wall Mount Enclosure, NEMA 3/4/12/13/IP66, Mild Steel, 1-Door, Continuous Hinged
Share Share Print Print
nVent

30 x 24 x 8, Hoffman A30H24BLP3PT Wall Mount Enclosure, NEMA 3/4/12/13/IP66, Mild Steel, 1-Door, Continuous Hinged

Short Description

30" x 24" x 8", NEMA 3/4/12/13, IP66, 14 Gauge ANSI 61 Gray Mild Steel, 1-Door, Wall Mount Enclosure with Continuous Hinged and 3-Point Latch Seamless Foam-In-Place Gasketed

Wall Mount Enclosure; Type 1-Door; Height 30 Inch; Width 24 Inch; Depth 8 Inch; Material Mild Steel; Material Specification 14 Gauge (Body); Color ANSI 61 Gray; Cover Type Continuous Hinged, Seamless Foam-In-Place Gasketed, 3-Point Latch; Back Panel A30P24, A30P24G; Enclosure NEMA 3/4/12/13, IP66; Mounting Wall; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Small Data Pocket; Applicable Standard IEC 60529

MFG #: A30H24BLP3PT

EECO #: HOA30H24BLP3PT

Brand: Hoffman
UPC #: 783510279127
Attributes
Features
Documents
Product Information
Attributes
Color
ANSI 61 Gray
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Mild Steel
Back Panel
A30P24, A30P24G
Nema Rating
NEMA 3/4/12/13, IP66
Service Type
Indoor/Outdoor
Mounting
Wall
Material Specification
14 Gauge (Body)
Type
1-Door
Depth
8 Inch
Width
24 Inch
Height
30 Inch
Cover Type
Continuous Hinged, Seamless Foam-In-Place Gasketed, 3-Point Latch
Features
  • Seamless Foam-In-Place Gasket Ensures a Continuous Seal
  • 90 Degree Body Flange Opening Channels Away Liquids
  • External, Welded-On Mounting Foot for Easy Installation
  • Continuous Hinge Provides Strength and Ruggedness
  • Removable Heavy Gauge Stainless Steel Continuous Hinge Pin
  • Seems Continuously Welded and Ground Smooth
  • RoHS/Reach Compliant
nVent_Hoffman_00080_96_97_CAT
nVent_Hoffman_00113_1_2_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00781_1_4_CAD
