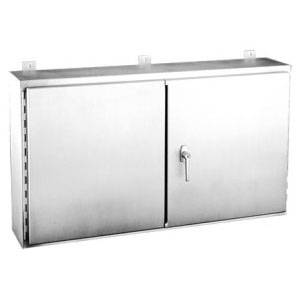

30 x 42 x 10, Hoffman A304210WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, HG Continuous Hinged
Share Share Print Print
nVent

30 x 42 x 10, Hoffman A304210WFSSLP Wall Mount Enclosure, NEMA 12/IP55, 304 Stainless Steel, 2-Door, HG Continuous Hinged

Short Description

30" x 42" x 10", NEMA 12, IP55, 14 Gauge 304 Stainless Steel, External Bracket Mount, 2-Door, Wall Mount Enclosure with Heavy Gauge Continuous Hinged/3-Point Latch and Key Locking Handle

Wall Mount Enclosure; Type 2-Door; Height 30 Inch; Width 42 Inch; Depth 10 Inch; Material 304 Stainless Steel; Material Specification 14 Gauge; Finish #4 Smooth Brushed (Door/Side/Top/Bottom); Cover Type Heavy Gauge Continuous Hinged, Continuous Hinge Pin, Gasketed, 3-Point Latch and Key Locking Handle; Back Panel A42P30, A42P30G; Enclosure NEMA 12, IP55; Mounting Wall, External Bracket; Service Type Indoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A304210WFSSLP

EECO #: HOA304210WFSSLP

Brand: Hoffman
UPC #: 783510839802
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed (Door/Side/Top/Bottom)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
304 Stainless Steel
Back Panel
A42P30, A42P30G
Nema Rating
NEMA 12, IP55
Service Type
Indoor
Mounting
Wall, External Bracket
Material Specification
14 Gauge
Type
2-Door
Depth
10 Inch
Width
42 Inch
Height
30 Inch
Cover Type
Heavy Gauge Continuous Hinged, Continuous Hinge Pin, Gasketed, 3-Point Latch and Key Locking Handle
Features
  • Seams Continuously Welded and Ground Smooth
  • Rolled Lip Around All Sides of Enclosure Body Opening
  • Gasketed Overlapping Doors Eliminate Need for Centerpost
  • Bonding Provision on Door
  • Grounding Stud on Body
  • RoHS/Reach Compliant
nVent_Hoffman_00008_INST
nVent_Hoffman_00080_176_177_CAT
nVent_Hoffman_00119_1_2_SPEC
nVent_Hoffman_00768_1_4_CAD
Qty Unit price
Ea
1 $5,252.00

Slqt
1 $5,252.00

Stpk
1 $5,252.00

Unit
1 $5,252.00
