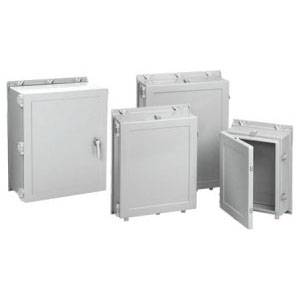

24.19 x 24.19 x 12, Hoffman A24H2412GQRLP3PT Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Reinforced Fiberglass, 316 Stainless Steel (Handle), 1-Door, Hinged
Share Share Print Print
nVent

24.19 x 24.19 x 12, Hoffman A24H2412GQRLP3PT Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Reinforced Fiberglass, 316 Stainless Steel (Handle), 1-Door, Hinged

Short Description

24.19" x 24.19" x 12", NEMA 3/3R/4/4X/12/13, IP66, Gray Electropolished 316 Stainless Steel Handle Reinforced Fiberglass, Wall Mount, 1-Door, Electrical Enclosure with Hinged and 3-Point Latch

Electrical Enclosure; Type 1-Door; Height 24.19 Inch; Width 24.19 Inch; Depth 12 Inch; Material Reinforced Fiberglass, 316 Stainless Steel (Handle); Color Gray; Finish Electropolished (Handle); Cover Type Hinged, Gasketed, 3-Point Latch; Back Panel A24P24, A24P24G; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Mounting Wall; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes 316L Stainless Steel Padlocking PowerGlide Handle, High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A24H2412GQRLP3PT

EECO #: HOA24H2412GQRLP3PT

Brand: Hoffman
UPC #: 783510143572
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Electropolished (Handle)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Reinforced Fiberglass, 316 Stainless Steel (Handle)
Back Panel
A24P24, A24P24G
Nema Rating
NEMA 3/3R/4/4X/12/13, IP66
Mounting
Wall
Type
1-Door
Depth
12 Inch
Width
24.19 Inch
Height
24.19 Inch
Cover Type
Hinged, Gasketed, 3-Point Latch
Features
  • Fiberglass Material has Excellent Temperature and Chemical Resistance Qualities and Exhibits Outstanding Physical Properties
  • 3-Point Latch Versions Assures Security and a Water Tight Seal While Still Allowing Convenient Access
  • Seams are Sealed
  • Enclosure may be Rotated 180 Degree for Left and Right Hinging
  • Molded-In Angular Sealing Flange Directs Water Away from Gasket Area
  • Gasket Assures Water Tight and Dust Tight Seal
  • Fiberglass Material is Easily Punched, Drilled, Filed or Sawed
  • Material is Halogen-Free
  • RoHS/Reach Compliant
nVent_Hoffman_00080_280_281_283_284_CAT
nVent_Hoffman_00114_1_2_4_5_SPEC
Qty Unit price
Ea
1 $1,673.00

Slqt
1 $1,673.00

Stpk
1 $1,673.00

Unit
1 $1,673.00
