24.19 x 24.19 x 12, Hoffman A24H2412GQRLP Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Reinforced Fiberglass, 1-Door, Hinged
Share Share Print Print
nVent

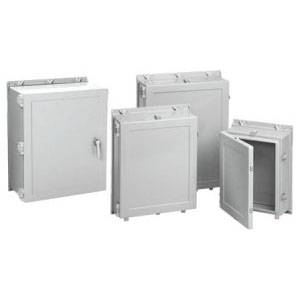

24.19 x 24.19 x 12, Hoffman A24H2412GQRLP Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Reinforced Fiberglass, 1-Door, Hinged

Short Description

24.19" x 24.19" x 12", NEMA 3/3R/4/4X/12/13, IP66, Gray Reinforced Fiberglass, Wall Mount, 1-Door, Electrical Enclosure with Hinged and (4) Fiberglass Reinforced Polyester Quick Release Latch

Electrical Enclosure; Type 1-Door; Height 24.19 Inch; Width 24.19 Inch; Depth 12 Inch; Material Reinforced Fiberglass; Color Gray; Cover Type Hinged, Gasketed, (4) Fiberglass Reinforced Polyester Quick Release Latch, 316L Stainless Steel Padlocking Hasp; Back Panel A24P24, A24P24G; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Mounting Wall; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A24H2412GQRLP

EECO #: HOA24H2412GQRLP

Brand: Hoffman
UPC #: 783510227203
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Reinforced Fiberglass
Back Panel
A24P24, A24P24G
Nema Rating
NEMA 3/3R/4/4X/12/13, IP66
Mounting
Wall
Type
1-Door
Depth
12 Inch
Width
24.19 Inch
Height
24.19 Inch
Cover Type
Hinged, Gasketed, (4) Fiberglass Reinforced Polyester Quick Release Latch, 316L Stainless Steel Padlocking Hasp
Features
  • Fiberglass Material has Excellent Temperature and Chemical Resistance Qualities and Exhibits Outstanding Physical Properties
  • Seams are Sealed
  • Enclosure may be Rotated 180 Degree for Left and Right Hinging
  • Molded-In Angular Sealing Flange Directs Water Away from Gasket Area
  • Gasket Assures Water Tight and Dust Tight Seal
  • Fiberglass Material is Easily Punched, Drilled, Filed or Sawed
  • Material is Halogen-Free
  • RoHS/Reach Compliant
nVent_Hoffman_00080_280_282_284_CAT
nVent_Hoffman_00114_1_3_5_SPEC
Qty Unit price
Ea
1 $1,614.00

Slqt
1 $1,614.00

Stpk
1 $1,614.00

Unit
1 $1,614.00
