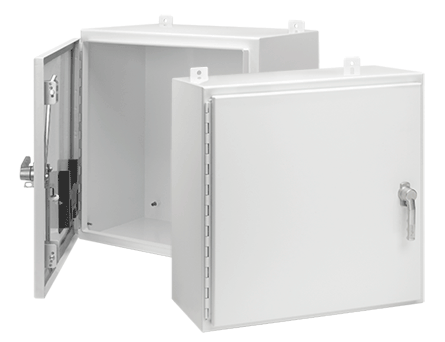

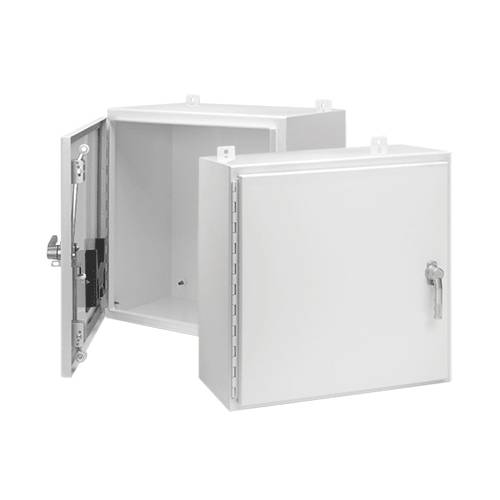

nVent HOFFMAN A24H2010SSLP3PTW A4SW3 Enclosure, 24 in L x 20 in W x 10 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

These single-door stainless steel enclosures provide industry leading protection for housing electrical components and controls in outdoor or corrosive environments. White polyester powder reduces absorption of solar radiation, which keeps internal components cooler. Hoffman's exclusive Type 316L stainless steel small PowerGlide padlocking handle and internal 3-point latching combine ease of access with security.

nVent HOFFMAN Enclosure, Series: A4SW3, 24 in Length, 20 in Width, 10 in Depth, NEMA 4X/IP66, Continuous Hinged Cover, 17 in W x 21 in H Panel, Lock: 3-Point Latch/Padlock Handle, Wall Mount, 304 Stainless Steel, Polyester Powder Painted, White
MFG #: A24H2010SSLP3PTW

EECO #: HOA24H2010SSLP3PTW

Brand: nVent HOFFMAN
UPC #: 783510171117
Attributes
Features
Documents
Product Information
Attributes
Color
White
Finish
Polyester Powder Painted
Length
24
UNSPSC
39121324
Material
304 Stainless Steel
Application
For housing electrical components and controls in outdoor or corrosive environments
Mounting Type
Wall
Depth
10
Width
20
Series
A4SW3
Cover Type
Continuous Hinged
Panel Size
17 in W x 21 in H
Features
  • Seams continuously welded and ground smooth
  • Type 4-rated gasket
  • 90 deg external formed flange on top of body opening
  • Type 316L stainless steel padlocking power glide handle and three-point latching
  • Door removed by pulling stainless steel continuous hinge pin
  • Data pocket is high impact thermoplastic
  • White polyester powder reduces absorption of solar radiation, which keeps internal components cooler
  • Hoffmans exclusive type 316L stainless steel small POWERGLIDE™ padlocking handle and internal three-point latching combine ease of access with security
  • 14 ga 304 stainless steel
  • Handle is electro polished
