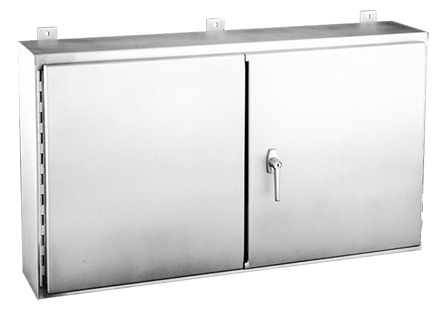

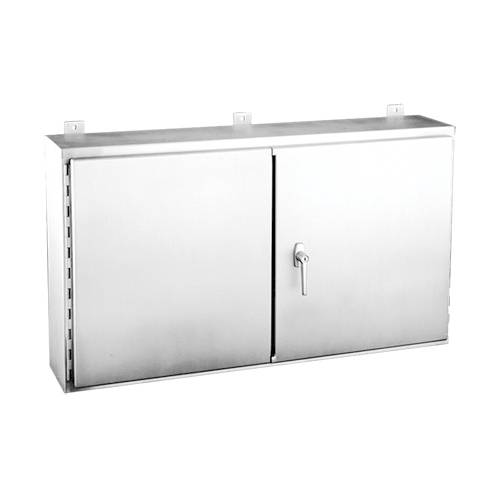

nVent HOFFMAN A244808WFSSLP A12SW 2-Door Enclosure, 24 in L x 48 in W x 8 in D, NEMA 12/IP55 NEMA Rating, 304 Stainless Steel

Short Description

For indoor applications requiring stainless steel, enclosure features overlapping doors and a centerpost-free interior for easy panel and component installation. The enclosure is secured by a single key-locking handle and three-point latching.

nVent HOFFMAN Enclosure, 2-Door, Series: A12SW, 24 in Length, 48 in Width, 8 in Depth, NEMA 12/IP55, Continuous Hinged Cover, 45 x 21 in Panel, Lock: 3-Point Latch/Keyed Handle, Wall Mount, 304 Stainless Steel, Brushed
MFG #: A244808WFSSLP

EECO #: HOA244808WFSSLP

Brand: nVent HOFFMAN
UPC #: 783510839703
Attributes
Features
Documents
Product Information
Attributes
Finish
Brushed
Length
24
UNSPSC
39121324
Material
304 Stainless Steel
Application
Indoor Applications
Mounting Type
Wall
Type
2-Door
Depth
8
Width
48
Series
A12SW
Warranty
1 Year
Cover Type
Continuous Hinged
Panel Size
45 x 21
Features
  • The enclosure is secured by a single keylocking handle and three-point latching
  • Seams continuously welded and ground smooth
  • Rolled lip around all sides of enclosure body opening
  • Gasketed overlapping doors eliminate need for center post
  • External mounting brackets
  • Plated steel three-point latching mechanism and keylocking handle
  • Easily removable doors by pulling heavy gauge continuous hinge pin
  • Data pocket is high impact thermoplastic
  • Bonding provision on door, grounding stud on body
  • 14 ga type 304 stainless steel
