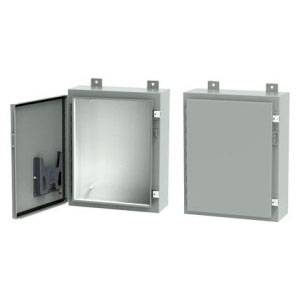

24 x 30 x 8, Hoffman A243008LP Wall Mount Enclosure, NEMA 12/13/IP65, Mild Steel, 1-Door, Continuous Hinged
Share Share Print Print
nVent

24 x 30 x 8, Hoffman A243008LP Wall Mount Enclosure, NEMA 12/13/IP65, Mild Steel, 1-Door, Continuous Hinged

Short Description

24" x 30" x 8", NEMA 12/13, IP65, 14 Gauge White Inside/ANSI 61 Gray Outside Mild Steel, External Welded-On Bracket Mount, 1-Door, Wall Mount Enclosure with Continuous Hinged and (2) Screw-Down Door Clamp

Wall Mount Enclosure; Type 1-Door; Height 24 Inch; Width 30 Inch; Depth 8 Inch; Material Mild Steel; Material Specification 14 Gauge; Color White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door); Cover Type Continuous Hinged, (2) Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple; Back Panel A30P24G; Enclosure NEMA 12/13, IP65; Mounting Wall, External Welded-On Bracket; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Small High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A243008LP

EECO #: HOA243008LP

Brand: Hoffman
UPC #: 783510282202
Attributes
Features
Documents
Product Information
Attributes
Color
White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Mild Steel
Back Panel
A30P24G
Nema Rating
NEMA 12/13, IP65
Mounting
Wall, External Welded-On Bracket
Material Specification
14 Gauge
Type
1-Door
Depth
8 Inch
Width
30 Inch
Height
24 Inch
Cover Type
Continuous Hinged, (2) Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple
Features
  • Seams Continuously Welded and Ground Smooth
  • External Wall Mounting Bracket for Easy Installation
  • Formed External Return Flanges Around All Sides of Enclosure Opening
  • Bonding Provision on Door
  • Seamless Foam-In-Place Gasket
  • For Application Requiring a Bright White Interior to Increase Control Visibility this Enclosure Includes a Padlocking Hasp and Staple for Security and Screw-Down Clamp for Secure Closure
  • RoHS/Reach Compliant
nVent_Hoffman_00080_88_89_91_CAT
nVent_Hoffman_00102_1_2_4_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00747_1_4_CAD
Qty Unit price
Ea
1 $744.00

Slqt
1 $744.00

Stpk
1 $744.00

Unit
1 $744.00
