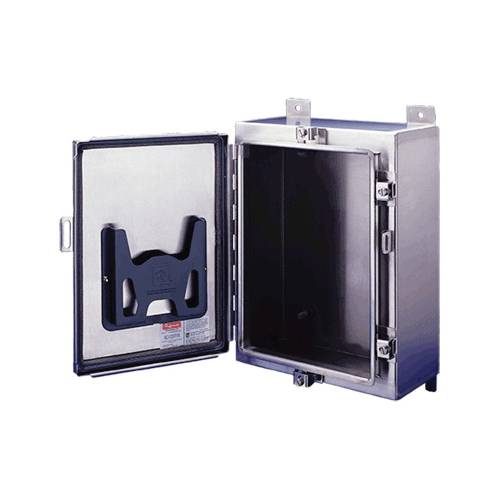

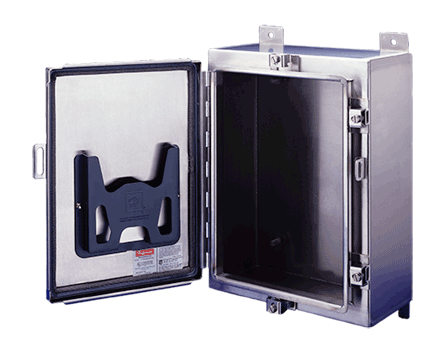

nVent HOFFMAN A242408LPEMCSS A4SEM Medium Type EMC Enclosure, 24 in L x 24 in W x 8 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A242408LPEMCSS A4SEM Medium Type EMC Enclosure, 24 in L x 24 in W x 8 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A242408LPEMCSS A4SEM Medium Type EMC Enclosure, 24 in L x 24 in W x 8 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A242408LPEMCSS A4SEM Medium Type EMC Enclosure, 24 in L x 24 in W x 8 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Share Share Print Print
nVent

nVent HOFFMAN A242408LPEMCSS A4SEM Medium Type EMC Enclosure, 24 in L x 24 in W x 8 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.

nVent HOFFMAN Enclosure, Medium Type EMC, Series: A4SEM, 24 in Length, 24 in Width, 8 in Depth, NEMA 4X/IP66, Clamp/Continuous Hinged Cover, 21 in W x 21 in H Panel, Lock: Hasp and Staple/Padlock, Wall Mount, 304 Stainless Steel, Brushed
MFG #: A242408LPEMCSS

EECO #: HOA242408LPEMCSS

Brand: nVent HOFFMAN
UPC #: 783510258894
Attributes
Features
Documents
Product Information
Attributes
Finish
Brushed
Length
24
UNSPSC
39121324
Material
304 Stainless Steel
Application
Indoor/Outdoor EMC Applications
Mounting Type
Wall
Type
Medium Type EMC
Depth
8
Width
24
Series
A4SEM
Warranty
1 Year
Cover Type
Clamp/Continuous Hinged
Panel Size
21 in W x 21 in H
Features
  • Seams continuously welded and ground smooth
  • Seamless foam in place gasket adjacent to woven monel EMC mesh gasket
  • Rolled lip around three sides of door
  • Stainless steel door clamp assembly
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Bonding provision on door, grounding stud on body
