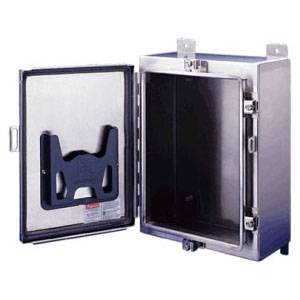

24 x 20 x 6, Hoffman A242006LPEMCSS Wall Mount Enclosure, NEMA 3/4/4X/12/13/IP66, 304 Stainless Steel, 1-Door, Continuous Hinged w/Clamp
Share Share Print Print
nVent

24 x 20 x 6, Hoffman A242006LPEMCSS Wall Mount Enclosure, NEMA 3/4/4X/12/13/IP66, 304 Stainless Steel, 1-Door, Continuous Hinged w/Clamp

Short Description

24" x 20" x 6", NEMA 3/4/4X/12/13, IP66, 14 Gauge #4 Smooth Brushed 304 Stainless Steel, 1-Door, Wall Mount Enclosure with Continuous Hinged/Clamp and EMC

Wall Mount Enclosure; Type 1-Door; Height 24 Inch; Width 20 Inch; Depth 6 Inch; Material 304 Stainless Steel; Material Specification 14 Gauge; Finish #4 Smooth Brushed; Cover Type Continuous Hinged with Clamp, EMC, Seamless Foam-In-Place Gasketed; Back Panel A24P20G; Enclosure NEMA 3/4/4X/12/13, IP66; Mounting Wall; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Thermoplastic Small Data Pocket; Applicable Standard IEC 60529

MFG #: A242006LPEMCSS

EECO #: HOA242006LPEMCSS

Brand: Hoffman
UPC #: 783510258795
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
304 Stainless Steel
Back Panel
A24P20G
Nema Rating
NEMA 3/4/4X/12/13, IP66
Service Type
Indoor/Outdoor
Mounting
Wall
Material Specification
14 Gauge
Type
1-Door
Depth
6 Inch
Width
20 Inch
Height
24 Inch
Cover Type
Continuous Hinged with Clamp, EMC, Seamless Foam-In-Place Gasketed
Features
  • Seams Continuously Welded and Ground Smooth
  • Seamless Foam in Place Gasket Adjacent to Woven Monel EMC Mesh Gasket
  • Rolled Lip Around Three Sides of Door
  • Stainless Steel Door Clamp Assemblies
  • Hasp and Staple for Padlocking
  • Removable Door with Continuous Hinge
  • Bonding Provision on Door
  • Grounding Stud on Body
  • RoHS/Reach Compliant
nVent_Hoffman_00080_172_173_CAT
nVent_Hoffman_00117_1_2_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00740_1_4_CAD
