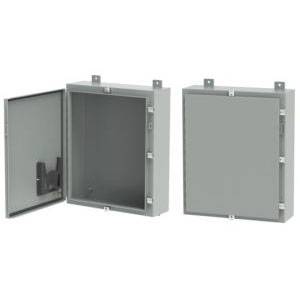

20" x 24" x 8", Hoffman Enclosures A20H24BLP Wall Mount Enclosure, NEMA 3/4/12/13, 16 Gauge, Mild Steel
Share Share Print Print
nVent

20" x 24" x 8", Hoffman Enclosures A20H24BLP Wall Mount Enclosure, NEMA 3/4/12/13, 16 Gauge, Mild Steel

Short Description

20" x 24" x 8", NEMA 3/4/12/13, 16 Gauge, ANSI 61 Gray, Polyester Powder Painted, Mild Steel, Continuous Hinge with Removable Pin Cover, 4-Clamp, 1-Door, Wall Mount Enclosure

Wall Mount Enclosure; Type 1-Door; Height 20 Inch; Width 24 Inch; Depth 8 Inch; Material Mild Steel; Material Specification 16 Gauge; Color ANSI 61 Gray; Finish Polyester Powder Painted; Cover Type Continuous Hinge with Removable Pin, Clamp, Foam Gasketed; Back Panel A24P20, A24P20G; Enclosure NEMA 3/4/12/13, IP66; Mounting Wall; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/REACH Compliant; Panel Size 21 Inch x 17 Inch; Number of Clamps 4; Application Industrial; Applicable Standard IEC 60529

MFG #: A20H24BLP

EECO #: HOA20H24BLP

Brand: Hoffman
UPC #: 783510242503
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121324
Features
  • RoHS/REACH Compliant
  • Seams Continuously Welded and Ground Smooth
  • External Welded-On Mounting Brackets for Easy installation
  • Formed External Flanges Around All Sides Of Enclosure Opening
  • Stainless Steel Screw-Down Clamps on Three Sides of Door
  • Removable Heavy Gauge Stainless Steel Continuous Hinge Pin
  • Removable Door with Continuous Hinge for Strength and Ruggedness
  • Hasp and Staple for Padlocking
  • Data Pocket is High-Impact Thermoplastic
  • Collar Studs for Mounting Optional Panels
  • Bonding Provision on Door
  • Seamless Foam-in-Place Gasket
Qty Unit price
Ea
1 $807.00

Slqt
1 $807.00

Stpk
1 $807.00

Unit
1 $807.00
everwhere
20" x 24" x 8", Hoffman Enclosures A20H24BLP Wall Mount Enclosure, NEMA 3/4/12/13, 16 Gauge, Mild Steel
