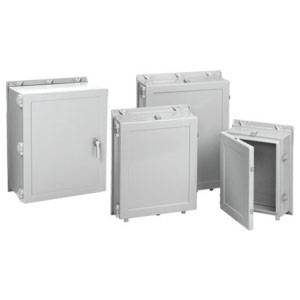

20.19 x 20.25 x 8, Hoffman A20H2008GQRLP3PT Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Reinforced Fiberglass, 316 Stainless Steel (Handle), 1-Door, Hinged
Share Share Print Print
nVent

20.19 x 20.25 x 8, Hoffman A20H2008GQRLP3PT Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Reinforced Fiberglass, 316 Stainless Steel (Handle), 1-Door, Hinged

Short Description

20.19" x 20.25" x 8", NEMA 3/3R/4/4X/12/13, IP66, Gray Reinforced Fiberglass, 316 Stainless Steel Handle, Wall Mount, 1-Door, Electrical Enclosure with Hinged and 3-Point Latch

Electrical Enclosure; Type 1-Door; Height 20.19 Inch; Width 20.25 Inch; Depth 8 Inch; Material Reinforced Fiberglass, 316 Stainless Steel (Handle); Color Gray; Finish Electropolished (Handle); Cover Type Hinged, Gasketed, 3-Point Latch; Back Panel A20P20, A20P20G; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Mounting Wall; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes 316L Stainless Steel Padlocking PowerGlide Handle, High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A20H2008GQRLP3PT

EECO #: HOA20H2008GQRLP3PT

Brand: Hoffman
UPC #: 783510143527
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Electropolished (Handle)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Reinforced Fiberglass, 316 Stainless Steel (Handle)
Back Panel
A20P20, A20P20G
Nema Rating
NEMA 3/3R/4/4X/12/13, IP66
Mounting
Wall
Type
1-Door
Depth
8 Inch
Width
20.25 Inch
Height
20.19 Inch
Cover Type
Hinged, Gasketed, 3-Point Latch
Features
  • Fiberglass Material has Excellent Temperature and Chemical Resistance Qualities and Exhibits Outstanding Physical Properties
  • 3-Point Latch Versions Assures Security and a Water Tight Seal While Still Allowing Convenient Access
  • Seams are Sealed
  • Enclosure may be Rotated 180 Degree for Left and Right Hinging
  • Molded-In Angular Sealing Flange Directs Water Away from Gasket Area
  • Gasket Assures Water Tight and Dust Tight Seal
  • Fiberglass Material is Easily Punched, Drilled, Filed or Sawed
  • Material is Halogen-Free
  • RoHS/Reach Compliant
nVent_Hoffman_00080_280_281_283_284_CAT
nVent_Hoffman_00114_1_2_4_5_SPEC
nVent_Hoffman_00325_1_4_CAD
Qty Unit price
Ea
1 $1,281.00

Slqt
1 $1,281.00

Stpk
1 $1,281.00

Unit
1 $1,281.00
