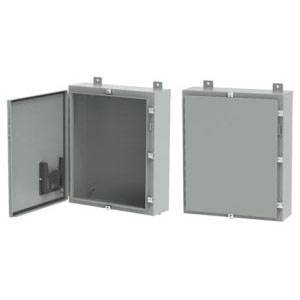

20 x 16 x 10, Hoffman A20H16CLP Wall Mount Enclosure, NEMA 3/4/12/13/IP66, Mild Steel, 1-Door, Continuous Hinged
Share Share Print Print
nVent

20 x 16 x 10, Hoffman A20H16CLP Wall Mount Enclosure, NEMA 3/4/12/13/IP66, Mild Steel, 1-Door, Continuous Hinged

Short Description

20" x 16" x 10", NEMA 3/4/12/13, IP66, 14 Gauge ANSI 61 Gray Polyester Powder Painted Mild Steel, External Welded-On Bracket Mount, 1-Door, Wall Mount Enclosure with Continuous Hinged and (4) Stainless Steel Screw-Down Door Clamp

Wall Mount Enclosure; Type 1-Door; Height 20 Inch; Width 16 Inch; Depth 10 Inch; Material Mild Steel; Material Specification 14 Gauge; Color ANSI 61 Gray; Finish Polyester Powder Painted; Cover Type Continuous Hinged, (4) Stainless Steel Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple; Back Panel A20P16, A20P16G; Enclosure NEMA 3/4/12/13, IP66; Mounting Wall, External Welded-On Bracket; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Small High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A20H16CLP

EECO #: HOA20H16CLP

Brand: Hoffman
UPC #: 783510245405
Attributes
Features
Documents
Product Information
Attributes
Color
ANSI 61 Gray
Finish
Polyester Powder Painted
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Mild Steel
Back Panel
A20P16, A20P16G
Nema Rating
NEMA 3/4/12/13, IP66
Service Type
Indoor/Outdoor
Mounting
Wall, External Welded-On Bracket
Material Specification
14 Gauge
Type
1-Door
Depth
10 Inch
Width
16 Inch
Height
20 Inch
Cover Type
Continuous Hinged, (4) Stainless Steel Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple
Features
  • Seams Continuously Welded and Ground Smooth
  • External Wall Mounting Bracket for Easy Installation
  • Formed External Flanges Around All Sides of Enclosure Opening
  • Stainless Steel Screw-Down Clamp on Three Sides of Door
  • Removable Door with Continuous Hinge for Strength and Ruggedness
  • Bonding Provision on Door
  • Seamless Foam-In-Place Gasket
  • RoHS/Reach Compliant
nVent_Hoffman_00080_94_95_CAT
nVent_Hoffman_00108_1_2_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00322_1_4_CAD
