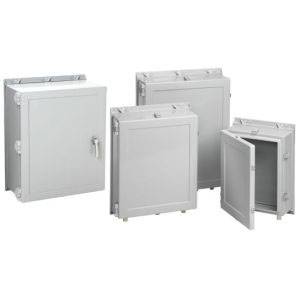

20.19" x 16.25" x 6", Hoffman Enclosures A20H1606GQRLP Wall Mount Enclosure, NEMA 3/3R/4/4X/12/13, 0.14" Thick, Reinforced Fiberglass
Share Share Print Print
nVent

20.19" x 16.25" x 6", Hoffman Enclosures A20H1606GQRLP Wall Mount Enclosure, NEMA 3/3R/4/4X/12/13, 0.14" Thick, Reinforced Fiberglass

Short Description

20.19" x 16.25" x 6", NEMA 3/3R/4/4X/12/13, 0.14" Thick, Gray, Smooth Matte, Reinforced Fiberglass, Hinged with 3-Point/Quick Release Latch Cover, 4-Latch, 1-Door, Wall Mount Enclosure

Wall Mount Enclosure; Type 1-Door; Height 20.19 Inch; Width 16.25 Inch; Depth 6 Inch; Material Reinforced Fiberglass; Color Gray; Finish Smooth Matte; Cover Type Hinged with 3-Point/Quick Release Latch; Back Panel A20P16, A20P16G; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Mounting Wall; Approval UL 508A, CUL, CSA C22.2; RoHS/REACH Compliant; Thickness 0.14 Inch; Panel Size 17 Inch x 13 Inch; Number of Latches 4; Application Industrial; Applicable Standard IEC 60529

MFG #: A20H1606GQRLP

EECO #: HOA20H1606GQRLP

Brand: Hoffman
UPC #: 783510226107
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121324
Features
  • RoHS/REACH Compliant
  • Fiberglass-Reinforced Material has Excellent Temperature and Chemical Resistance Qualities and Exhibits Outstanding Physical Properties
  • Type 316L Stainless Steel Padlocking Powerglide Handle on 3-Point Latch Versions Assures Security and a Watertight Seal while Still Allowing Convenient Access
  • Quick-Release Latch Versions Feature Fiberglass-Reinforced Polyester Latches with integral Type 316L Stainless Steel Padlocking Hasp
  • Seams are Sealed
  • No Holes or Knockouts
  • Enclosure May be Rotated 18 Degrees for Left and Right Hinging
  • Molded-in Angular Sealing Flange Directs Water Away from Gasket Area
  • Gasket Assures Watertight and Dust-Tight Seal
  • Fiberglass Material is Easily Punched, Drilled, Filed or Sawed
  • Data Pocket is High-Impact Thermoplastic
  • Plated Steel Collar Studs for Mounting Optional Panels and Terminal Block Kits
  • Material is Halogen Free
Qty Unit price
Ea
1 $980.00

Slqt
1 $980.00

Stpk
1 $980.00

Unit
1 $980.00
