20 x 16 x 6, Hoffman A201606LPEMCSS Continuous Hinge Enclosure, NEMA 4X/, 304 Stainless Steel, 1-Door, 0

Short Description

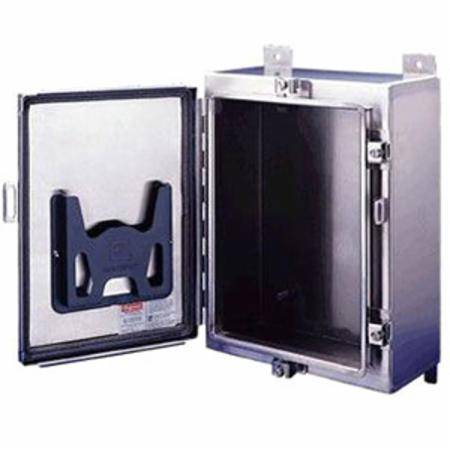

20" x 16" x 6", NEMA 4X, #4 Smooth Brushed, 14 Gauge 304 Stainless Steel, Foam Gasketed, 1-Door, Continuous Hinge Enclosure

Continuous Hinge Enclosure; Type 1-Door; Height 20 Inch; Width 16 Inch; Depth 6 Inch; Material 304 Stainless Steel; Material Specification 14 Gauge; Finish #4 Smooth Brushed; Cover Type Foam Gasketed; Back Panel A20P16G; Enclosure NEMA 4X; Mounting Wall; Approval UL 508A, CUL, CSA C22.2; RoHS Compliant; Applicable Standard IEC 60529

MFG #: A201606LPEMCSS

EECO #: HOA201606LPEMCSS

Brand: Hoffman
UPC #: 783510258696
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Mounting
Wall
Material Specification
14 Gauge
Type
1-Door
Features
  • Seams Continuously Welded and Ground Smooth
  • Seamless Foam-In-Place Gasket Adjacent to Woven Monel EMC Mesh Gasket
  • Rolled Lip Around Three Sides of Door
  • Stainless Steel Door Clamp Assemblies
  • Hasp and Staple for Padlocking
  • Removable Door with Continuous Hinge
  • Data Pocket is High Impact Thermoplastic
  • Bonding Provision on Door
  • Grounding Stud on Body
  • RoHS Compliant
HOFMANE01207_1_2
HOFMANE01312_164
HOFMANINST00350
