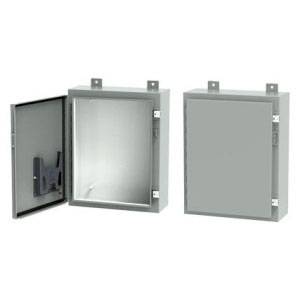

20 x 12 x 6, Hoffman A201206LP Wall Mount Enclosure, NEMA 12/13/IP65, Mild Steel, 1-Door, Continuous Hinged
Share Share Print Print
nVent

20 x 12 x 6, Hoffman A201206LP Wall Mount Enclosure, NEMA 12/13/IP65, Mild Steel, 1-Door, Continuous Hinged

Short Description

20" x 12" x 6", NEMA 12/13, IP65, 16 Gauge White Inside/ANSI 61 Gray Outside Mild Steel, External Welded-On Bracket Mount, 1-Door, Wall Mount Enclosure with Continuous Hinged and (2) Screw-Down Door Clamp

Wall Mount Enclosure; Type 1-Door; Height 20 Inch; Width 12 Inch; Depth 6 Inch; Material Mild Steel; Material Specification 16 Gauge; Color White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door); Cover Type Continuous Hinged, (2) Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple; Back Panel A20P12, A20P12G; Enclosure NEMA 12/13, IP65; Mounting Wall, External Welded-On Bracket; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Small High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A201206LP

EECO #: HOA201206LP

Brand: Hoffman
UPC #: 783510278502
Attributes
Features
Documents
Product Information
Attributes
Color
White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Mild Steel
Back Panel
A20P12, A20P12G
Nema Rating
NEMA 12/13, IP65
Mounting
Wall, External Welded-On Bracket
Material Specification
16 Gauge
Type
1-Door
Depth
6 Inch
Width
12 Inch
Height
20 Inch
Cover Type
Continuous Hinged, (2) Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple
Features
  • Seams Continuously Welded and Ground Smooth
  • External Wall Mounting Bracket for Easy Installation
  • Formed External Return Flanges Around All Sides of Enclosure Opening
  • Bonding Provision on Door
  • Seamless Foam-In-Place Gasket
  • For Application Requiring a Bright White Interior to Increase Control Visibility this Enclosure Includes a Padlocking Hasp and Staple for Security and Screw-Down Clamp for Secure Closure
  • RoHS/Reach Compliant
nVent_Hoffman_00080_88_91_CAT
nVent_Hoffman_00102_1_4_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00314_1_4_CAD
Qty Unit price
Ea
1 $483.00

Slqt
1 $483.00

Stpk
1 $483.00

Unit
1 $483.00
