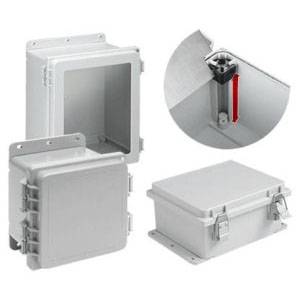

17.95 x 15.94 x 10.35, Hoffman A181610PHCW POLYPRO™ Wall Mount Enclosure, NEMA 4/4X/12/13/IP66, Non-Glass Filled Polyester, 1-Window Door, Screw Snap-Hinged
Share Share Print Print
nVent

17.95 x 15.94 x 10.35, Hoffman A181610PHCW POLYPRO™ Wall Mount Enclosure, NEMA 4/4X/12/13/IP66, Non-Glass Filled Polyester, 1-Window Door, Screw Snap-Hinged

Short Description

17.95" x 15.94" x 10.35", NEMA 4/4X/12/13, IP66, RAL 7035 Light Gray Textured Non-Glass Filled Polyester, Bracket Mount, 1-Window Door, Wall Mount Enclosure with Snap-Hinged/Overlapping/Raised and Screw

Wall Mount Enclosure; Type 1-Window Door; Height 17.95 Inch; Width 15.94 Inch; Depth 10.35 Inch; Material Non-Glass Filled Polyester; Color RAL 7035 Light Gray; Finish Textured; Cover Type Overlapping, Raised, Gasket, Screw, Snap-Hinged; Back Panel A18P16, A18P16AL; Enclosure NEMA 4/4X/12/13, IP66; Mounting Bracket; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Applicable Standard IEC 60529

MFG #: A181610PHCW

EECO #: HOA181610PHCW

Brand: Hoffman
UPC #: 783510170936
Attributes
Features
Documents
Product Information
Attributes
Color
RAL 7035 Light Gray
Finish
Textured
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Non-Glass Filled Polyester
Back Panel
A18P16, A18P16AL
Nema Rating
NEMA 4/4X/12/13, IP66
Mounting
Bracket
Type
1-Window Door
Depth
10.35 Inch
Width
15.94 Inch
Height
17.95 Inch
Cover Type
Overlapping, Raised, Gasket, Screw, Snap-Hinged
Features
  • Excellent Chemical Resistance to a Broad Range of Solvents, Alkalis and Acids
  • Resists Cracking and Provides Excellent Impact Resistance
  • Lighter Weight than Fiberglass
  • Recyclable
  • Easy, Dustless in Field Modifications Using Standard Tool
  • Molded Layout Grid on Inside of Body and Solid Covers Assists with Component Mounting
  • Molded-In Embosses for Rear Panel Mounting
  • Scratch Resistant Polycarbonate Window
  • RoHS/Reach Compliant
nVent_Hoffman_00080_250_251_CAT
nVent_Hoffman_00089_1_2_SPEC
nVent_Hoffman_00170_INST
nVent_Hoffman_00310_1_4_CAD
Qty Unit price
Ea
1 $378.00

Slqt
1 $378.00

Stpk
1 $378.00

Unit
1 $378.00
