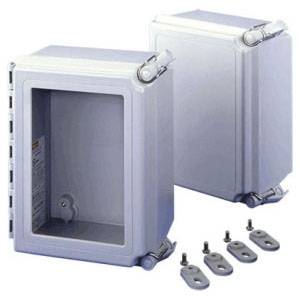

18 x 16 x 10, Hoffman A181610CHSCFG Electrical Enclosure, NEMA 4/4X/12/13/IP66, Compression Molded Fiberglass, 1-Solid Door, Continuous Hinged
Share Share Print Print
nVent

18 x 16 x 10, Hoffman A181610CHSCFG Electrical Enclosure, NEMA 4/4X/12/13/IP66, Compression Molded Fiberglass, 1-Solid Door, Continuous Hinged

Short Description

18" x 16" x 10", NEMA 4/4X/12/13, IP66, Light Gray Compression Molded Fiberglass, Bracket Mount, 1-Solid Door, Electrical Enclosure with Continuous Hinged and Screw

Electrical Enclosure; Type 1-Solid Door; Height 18 Inch; Width 16 Inch; Depth 10 Inch; Material Compression Molded Fiberglass; Color Light Gray; Cover Type Continuous Hinged, Hinge Pin and Bail, Gasketed, Screw; Back Panel A14P16, A14P16AL; Enclosure NEMA 4/4X/12/13, IP66; Mounting Bracket; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Applicable Standard IEC 60529

MFG #: A181610CHSCFG

EECO #: HOA181610CHSCFG

Brand: Hoffman
UPC #: 783510318307
Attributes
Features
Documents
Product Information
Attributes
Color
Light Gray
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Compression Molded Fiberglass
Back Panel
A14P16, A14P16AL
Nema Rating
NEMA 4/4X/12/13, IP66
Mounting
Bracket
Type
1-Solid Door
Depth
10 Inch
Width
16 Inch
Height
18 Inch
Cover Type
Continuous Hinged, Hinge Pin and Bail, Gasketed, Screw
Features
  • Compression Molded Fiberglass has Outstanding Chemical and Temperature Resistance Qualities and Exhibits Excellent Weatherability and Physical Properties
  • Fiberglass Material is Easily Punched, Drilled, Filed or Sawed
  • Gasket Assures Water Tight and Dust Tight Seal
  • Screw Cover Enclosure are Secured with Two Captivated Type 316 Stainless Steel Slotted Cover Screw
  • Halogen-Free Material
  • RoHS/Reach Compliant
nVent_Hoffman_00080_256_258_CAT
nVent_Hoffman_00091_1_3_SPEC
nVent_Hoffman_00180_INST
nVent_Hoffman_00309_1_4_CAD
Qty Unit price
Ea
1 $300.00

Slqt
1 $300.00

Stpk
1 $300.00

Unit
1 $300.00
