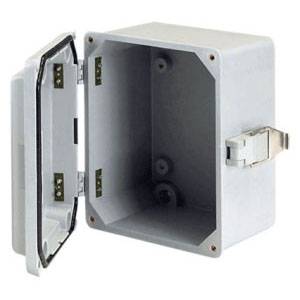

18 x 14 x 9, Hoffman A18149JFGQRR Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Compression Molded Fiberglass, 1-Solid Door, Hinged
Share Share Print Print
nVent

18 x 14 x 9, Hoffman A18149JFGQRR Electrical Enclosure, NEMA 3/3R/4/4X/12/13/IP66, Compression Molded Fiberglass, 1-Solid Door, Hinged

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

18" x 14" x 9", NEMA 3/3R/4/4X/12/13, IP66, Light Gray Compression Molded Fiberglass, 1-Solid Door, Electrical Enclosure with Hinged and Quick Release Latch

Electrical Enclosure; Type 1-Solid Door; Height 18 Inch; Width 14 Inch; Depth 9 Inch; Material Compression Molded Fiberglass; Color Light Gray; Cover Type Hinged, Seamless Foam-In-Place Gasketed, Quick Release Latch; Back Panel A16P14, A16P14AL; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Applicable Standard IEC 60529

MFG #: A18149JFGQRR

EECO #: HOA18149JFGQRR

Brand: Hoffman
UPC #: 783510412807
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Light Gray
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Compression Molded Fiberglass
Back Panel
A16P14, A16P14AL
Nema Rating
NEMA 3/3R/4/4X/12/13, IP66
Type
1-Solid Door
Depth
9 Inch
Width
14 Inch
Height
18 Inch
Cover Type
Hinged, Seamless Foam-In-Place Gasketed, Quick Release Latch
Features
  • Compression Molded Fiberglass Material has Excellent Temperature and Chemical Resistance Qualities and Exhibits Outstanding Physical Properties
  • Fiberglass Material is Easily Punched, Drilled, Filed or Sawed
  • Seamless Foam-In-Place Gasket Assures Water Tight and Dust Tight Seal
  • Polycarbonate Window are Permanently Bonded in Place
  • Quick-Release Latch have Corrosion Resistant Polyester Hinges and Polyester Latches with a Type 316L Stainless Steel Bail
  • Attached with Type 316 Stainless Steel Screw
  • a Type 316L Stainless Steel Padlock Hasp is Furnished with Each Enclosure
  • Sealing Washers are Furnished with Enclosure
  • Halogen-Free Material
  • RoHS/Reach Compliant
nVent_Hoffman_00043_INST
nVent_Hoffman_00090_1_3_SPEC
nVent_Hoffman_00308_1_4_CAD
