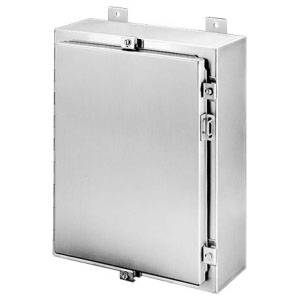

16 x 12 x 8, Hoffman A16H1208SS6LP Wall Mount Enclosure, NEMA 3/3R/4/4X/12/13/IP66, 316L Stainless Steel, 1-Door, Continuous Hinged
Share Share Print Print
nVent

16 x 12 x 8, Hoffman A16H1208SS6LP Wall Mount Enclosure, NEMA 3/3R/4/4X/12/13/IP66, 316L Stainless Steel, 1-Door, Continuous Hinged

Short Description

16" x 12" x 8", NEMA 3/3R/4/4X/12/13, IP66, 14 Gauge 316L Stainless Steel, 1-Door, Wall Mount Enclosure with Continuous Hinged and (4) Stainless Steel Door Clamp

Wall Mount Enclosure; Type 1-Door; Height 16 Inch; Width 12 Inch; Depth 8 Inch; Material 316L Stainless Steel; Material Specification 14 Gauge; Finish #4 Smooth Brushed (Door/Side/Top/Bottom); Cover Type Continuous Hinged, (4) Stainless Steel Door Clamp, Stainless Steel Continuous Hinge Pin, Seamless Foam-in-Place Gasketed, Padlockable Hasp and Staple; Back Panel A16P12, A16P12G, A16P12SS6; Enclosure NEMA 3/3R/4/4X/12/13, IP66; Mounting Wall; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes Small High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A16H1208SS6LP

EECO #: HOA16H1208SS6LP

Brand: Hoffman
UPC #: 783510836009
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed (Door/Side/Top/Bottom)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
316L Stainless Steel
Back Panel
A16P12, A16P12G, A16P12SS6
Nema Rating
NEMA 3/3R/4/4X/12/13, IP66
Service Type
Indoor/Outdoor
Mounting
Wall
Material Specification
14 Gauge
Type
1-Door
Depth
8 Inch
Width
12 Inch
Height
16 Inch
Cover Type
Continuous Hinged, (4) Stainless Steel Door Clamp, Stainless Steel Continuous Hinge Pin, Seamless Foam-in-Place Gasketed, Padlockable Hasp and Staple
Features
  • Seams Continuously Welded and Ground Smooth
  • Rolled Lip Around Three Sides of Door
  • Bonding Provision on Door
  • Grounding Stud on Body
  • For Use in Indoor and Outdoor Corrosive Environments that Require a Water Tight Seal this Enclosures Seamless Foam-In-Place Gasket and Screw-Down Clamp Provide a Secure Seal Against Contaminants
  • RoHS/Reach Compliant
nVent_Hoffman_00080_168_169_171_CAT
nVent_Hoffman_00107_1_2_4_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00297_1_4_CAD
Qty Unit price
Ea
1 $1,686.00

Slqt
1 $1,686.00

Stpk
1 $1,686.00

Unit
1 $1,686.00
