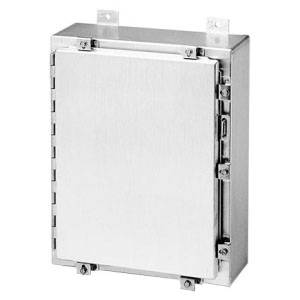

16 x 12 x 6, Hoffman A16H1206ALLP Wall Mount Enclosure, NEMA 3R/4/4X/12/13/IP66, Aluminum, 1-Door, Continuous Hinged
Share Share Print Print
nVent

16 x 12 x 6, Hoffman A16H1206ALLP Wall Mount Enclosure, NEMA 3R/4/4X/12/13/IP66, Aluminum, 1-Door, Continuous Hinged

Short Description

16" x 12" x 6", NEMA 3R/4/4X/12/13, IP66, 5052-H32 Aluminum, 1-Door, Wall Mount Enclosure with Continuous Hinged and (4) Stainless Steel Clamp

Wall Mount Enclosure; Type 1-Door; Height 16 Inch; Width 12 Inch; Depth 6 Inch; Material Aluminum; Material Specification 5052-H32; Finish Smooth Brushed (Door Front); Cover Type Continuous Hinged, Stainless Steel Removable Pin, (4) Stainless Steel Clamp, Oil Resistant Gasketed, Padlockable Hasp and Staple; Back Panel A16P12AL, A16P12, A16P12G; Enclosure NEMA 3R/4/4X/12/13, IP66; Mounting Wall; Service Type Indoor/Outdoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Includes High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529

MFG #: A16H1206ALLP

EECO #: HOA16H1206ALLP

Brand: Hoffman
UPC #: 783510272609
Attributes
Features
Documents
Product Information
Attributes
Finish
Smooth Brushed (Door Front)
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Material
Aluminum
Back Panel
A16P12AL, A16P12, A16P12G
Nema Rating
NEMA 3R/4/4X/12/13, IP66
Service Type
Indoor/Outdoor
Mounting
Wall
Material Specification
5052-H32
Type
1-Door
Depth
6 Inch
Width
12 Inch
Height
16 Inch
Cover Type
Continuous Hinged, Stainless Steel Removable Pin, (4) Stainless Steel Clamp, Oil Resistant Gasketed, Padlockable Hasp and Staple
Features
  • Seams Continuously Welded and Ground Smooth
  • High Impact Thermoplastic Data Pocket
  • Hasp and Staple for Padlocking
  • Panel Screws are Plated
  • Oil-Resistant Gasket
  • RoHS/Reach Compliant
nVent_Hoffman_00080_326_327_CAT
nVent_Hoffman_00106_1_2_SPEC
nVent_Hoffman_00286_INST
nVent_Hoffman_00296_1_4_CAD
