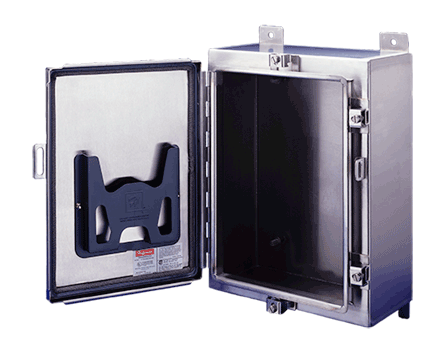

nVent HOFFMAN A161206LPEMCSS A4SEM Medium Type EMC Enclosure, 16 in L x 12 in W x 6 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Share Share Print Print
nVent

nVent HOFFMAN A161206LPEMCSS A4SEM Medium Type EMC Enclosure, 16 in L x 12 in W x 6 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.

nVent HOFFMAN Enclosure, Medium Type EMC, Series: A4SEM, 16 in Length, 12 in Width, 6 in Depth, NEMA 4X/IP66, Clamp/Continuous Hinged Cover, 9 in W x 13 in H Panel, Lock: Hasp and Staple/Padlock, Wall Mount, 304 Stainless Steel, Brushed
MFG #: A161206LPEMCSS

EECO #: HOA161206LPEMCSS

Brand: nVent HOFFMAN
UPC #: 783510258597
Attributes
Features
Documents
Product Information
Attributes
Finish
Brushed
Length
16
UNSPSC
39121324
Material
304 Stainless Steel
Application
Indoor/Outdoor EMC Applications
Mounting Type
Wall
Type
Medium Type EMC
Depth
6
Width
12
Series
A4SEM
Warranty
1 Year
Cover Type
Clamp/Continuous Hinged
Panel Size
9 in W x 13 in H
Features
  • 14 ga type 304 stainless steel bodies and doors
  • Seams continuously welded and ground smooth
  • Seamless foam in place gasket adjacent to woven monel EMC mesh gasket
  • Rolled lip around three sides of door
  • Stainless steel door clamp assembly
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Bonding provision on door, grounding stud on body
