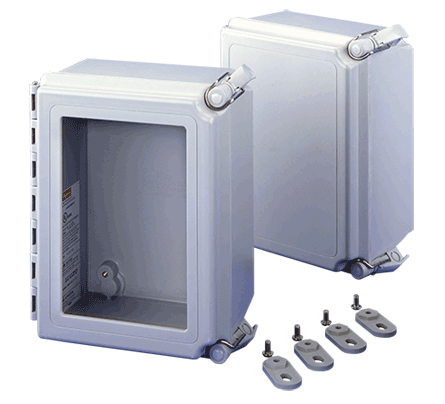

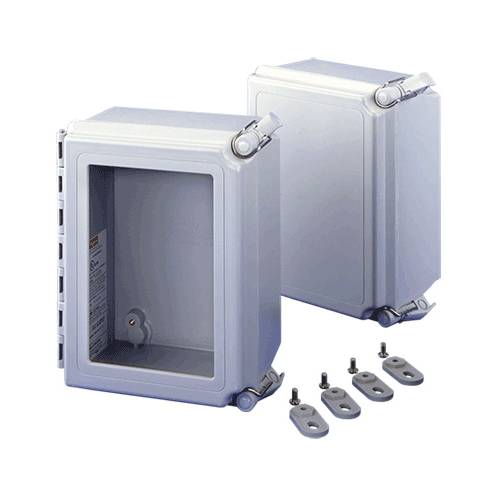

Hoffman A14128CHSCFGW Enclosure, 14 in H x 12 in W x 8 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass
Hoffman A14128CHSCFGW Enclosure, 14 in H x 12 in W x 8 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass
Hoffman A14128CHSCFGW Enclosure, 14 in H x 12 in W x 8 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass
Hoffman A14128CHSCFGW Enclosure, 14 in H x 12 in W x 8 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass
Share Share Print Print
nVent

Hoffman A14128CHSCFGW Enclosure, 14 in H x 12 in W x 8 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass

Short Description

The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.

Hoffman Enclosure, Series: A48, 14 in Height, 12 in Width, 8 in Depth, NEMA 4X/IP66 NEMA Rating, Continuous Hinged/Screw Cover, 12.75 x 10.88 in Panel, Lock: Padlock Latch, Wall Mounting, Fiberglass, Light Gray
MFG #: A14128CHSCFGW

EECO #: HOA14128CHSCFGW

Brand: nVent HOFFMAN
UPC #: 783510312305
Attributes
Features
Documents
Product Information
Attributes
Color
Light Gray
UNSPSC
39121324
Material
Fiberglass
Mounting Type
Wall
Depth
8
Width
12
Height
14
Series
A48
Warranty
1 Year
Cover Type
Continuous Hinged/Screw
Panel Size
12.75 x 10.88
Features
  • Compression molded fiberglass has outstanding chemical and temperature resistance qualities and exhibits excellent weather ability and physical properties
  • Fiberglass is easily punched, drilled, filed or sawed
  • Gasket assures watertight and dusttight seal
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Removable hinged cover attached to body with type 316 stainless steel hinge pin
  • Screw cover enclosures are secured with two captivated type 316 stainless steel slotted cover screws
  • Enclosures with quick release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
  • Hinge pin and bail are corrosion-resistant type 316 stainless steel
  • Padlock provisions included in each latch
  • Material is halogen-free
  • The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing
  • Corner latches provide unobstructed access, the continuous hinge provides a secure seal and double latching creates added security
