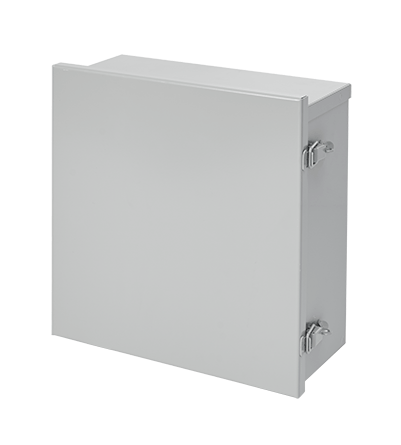

nVent HOFFMAN A12R106HCLO A3LO Enclosure, 12 in L x 10 in W x 6 in D, NEMA 3R NEMA Rating, Steel

Short Description

Featuring a removable cover for easy mounting and access, these enclosures protect components in applications subject to rain, sleet, snow or dripping water.

nVent HOFFMAN Enclosure, Series: A3LO, 12 in Length, 10 in Width, 6 in Depth, NEMA 3R, Hinged/Lift-Off Cover, 8.88 in W x 8.75 in H Panel, Lock: Pull Catch Padlock, Wall Mount, Steel, Galvanized/Powder Coated, Gray
MFG #: A12R106HCLO

EECO #: HOA12R106HCLO

Brand: nVent HOFFMAN
UPC #: 783510388904
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Galvanized/Powder Coated
Length
12
UNSPSC
39121324
Material
Steel
Application
For protect components in applications subject to rain, sleet, snow or dripping water
Mounting Type
Wall
Depth
6
Width
10
Series
A3LO
Warranty
1 Year
Cover Type
Hinged/Lift-Off
Panel Size
8.88 in W x 8.75 in H
Features
  • 16 or 14 ga galvanized steel
  • 16 ga cover fastened securely with draw pull catch
  • Drip shield top and seam-free sides, front and back
  • Galvanized steel lift-off hinges with stainless steel pins
  • Provisions for padlocking on each draw pull catch
  • Embossed mounting holes on back of enclosure
  • Gasketing along top of door
  • Galvanized/polyester powder painted
  • Without knockout
