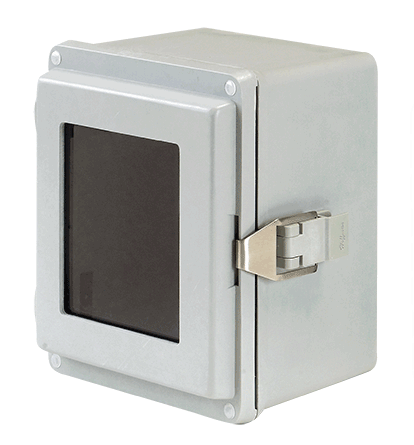

Hoffman A1287JFGQRPWR Junction Box, 11-1/2 in H x 8 in W x 6.53 in D, Hinged Window Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.

Hoffman Junction Box, Series: A50, 11-1/2 in Height, 8 in Width, 6.53 in Depth, NEMA 4X/IP66 NEMA Rating, Hinged Window Cover, 8.75 x 6.88 in Panel, Lock: Quick Release Latch/Padlock Hasp, 601 cu-in Capacity, Wall Mounting, Fiberglass, Light Gray
MFG #: A1287JFGQRPWR

EECO #: HOA1287JFGQRPWR

Brand: nVent HOFFMAN
UPC #: 783510413101
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Light Gray
UNSPSC
39121324
Material
Fiberglass
Application
For able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable a broad range of applications
Mounting Type
Wall
Type
Small
Depth
6.53
Width
8
Height
11-1/2
Series
A50
Capacity
601
Cover Type
Hinged Window
Panel Size
8.75 x 6.88
Features
  • Compression molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam in place gasket assures a watertight and dust tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Polycarbonate windows are permanently bonded in place
  • Enclosures with quick release latches have corrosion-resistant polyester hinges and polyester latches with a type 316L stainless steel bail
  • Attached with type 316 stainless steel screws
  • A type 316L stainless steel padlock hasp is furnished with each enclosure
  • Sealing washers are furnished with enclosure
  • Material is halogen-free
