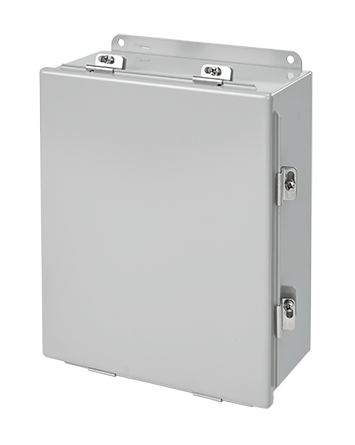

Hoffman A1264CHNF Junction Box, 12 in H x 6 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4/IP66 NEMA Rating, Mild Steel
Share Share Print Print
nVent

Hoffman A1264CHNF Junction Box, 12 in H x 6 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4/IP66 NEMA Rating, Mild Steel

Short Description

A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications.

Hoffman Junction Box, Series: A51NF, 12 in Height, 6 in Width, 4 in Depth, NEMA 4/IP66 NEMA Rating, Continuous Hinged/Screw Clamp Cover, 10.75 x 4.88 in Panel, Wall Mounting, Mild Steel, Polyester Powder Painted, Gray
MFG #: A1264CHNF

EECO #: HOA1264CHNF

Brand: nVent HOFFMAN
UPC #: 783510292447
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
UNSPSC
39121303
Material
Mild Steel
Application
Used to provide environmental protection and security in indoor or outdoor applications
Mounting Type
Wall
Depth
4
Width
6
Height
12
Series
A51NF
Cover Type
Continuous Hinged/Screw Clamp
Panel Size
10.75 x 4.88
Features
  • Seams continuously welded and ground smooth
  • Stainless steel screw-down clamps on three sides of door
  • Stainless steel hinge pin
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6 x 4 in (152 x 102 mm) and larger
  • Bonding provision on door
  • External welded on mounting brackets for easy installation
IDW_DOCUMENT_6fd9c4fc72479d8cb85137c143238fe864b95a3232fc96fd37ccbb84e0f67cc8
IDW_DOCUMENT_f58cd0d8b30056de9afec9c72a814792afc6cd09f0fc01fe65a30c3127782967
Hoffman_A12108CHNF_Installation_Instructions
