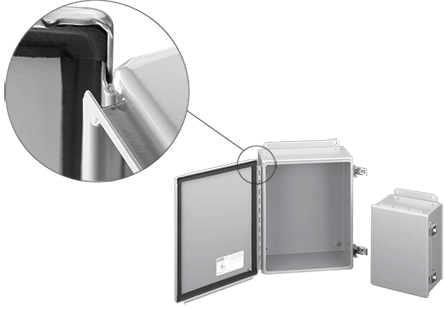

Hoffman A1210CHFTC Junction Box With Flange Trough Collar, 12 in H x 10 in W x 4.54 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
Hoffman A1210CHFTC Junction Box With Flange Trough Collar, 12 in H x 10 in W x 4.54 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
Hoffman A1210CHFTC Junction Box With Flange Trough Collar, 12 in H x 10 in W x 4.54 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
Hoffman A1210CHFTC Junction Box With Flange Trough Collar, 12 in H x 10 in W x 4.54 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel
Share Share Print Print
nVent

Hoffman A1210CHFTC Junction Box With Flange Trough Collar, 12 in H x 10 in W x 4.54 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel

Short Description

Used in automotive and other applications that require an outward formed external flange trough collar to keep out liquids and contaminants. These enclosures feature tool-to-open latches for securing cover.

Hoffman Junction Box, Series: A51, 12 in Height, 10 in Width, 4.54 in Depth, NEMA 12/IP65 NEMA Rating, Continuous Hinged Cover, 10.75 x 8.88 in Panel, Lock: Plated Latch, Wall Mounting, Steel, Polyester Powder Painted, Gray

MFG #: A1210CHFTC

EECO #: HOA1210CHFTC

Brand: nVent HOFFMAN
UPC #: 783510743604
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
UNSPSC
39121303
Material
Steel
Application
Used in automotive and other applications that require an outward formed external flange trough collar to keep out liquids and contaminants
Mounting Type
Wall
Depth
4.54
Width
10
Height
12
Series
A51
Cover Type
Continuous Hinged
Panel Size
10.75 x 8.88
Features
  • 16 ga body, 16 or 14 ga door
  • Return flange design, formed around the body opening, diverts liquid contaminants away from the enclosure door opening
  • Bonding provision on door
  • Heavy duty, tool-to-open, plated latches
  • Oil-resistant gasket
  • External welded on mounting brackets for easy installation
  • Weldnuts provided for mounting optional panels and terminal block kits
  • Seams continuously welded and ground smooth
IDW_DOCUMENT_6fd9c4fc72479d8cb85137c143238fe864b95a3232fc96fd37ccbb84e0f67cc8
IDW_DOCUMENT_85a987b131ac4f4cd1924d75f647e65b82a97d74f982cccac4e22482445c150d
IDW_DOCUMENT_bf6e628f1178607d9b61566bc63b126ecc4d60177354b06676b758433079ed8d
Qty Unit price
Ea
1 $188.00
