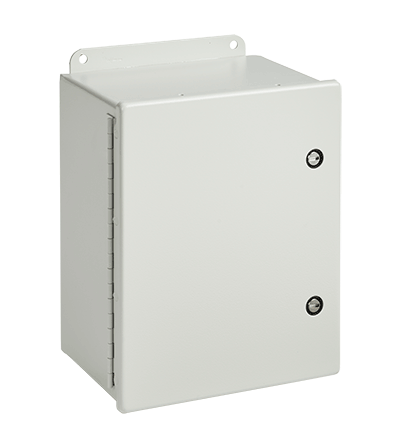

nVent HOFFMAN A12064CHFL A51FL Junction Box, 12 in H x 6 in W x 4 in D, Continuous Hinged Cover, NEMA 4/IP66 NEMA Rating, Steel

Short Description

This enclosure provides the convenience of quarter-turn latching with an aesthetic, easy-to-maintain light gray textured finish.

nVent HOFFMAN Junction Box, Series: A51FL, 12 in Height, 6 in Width, 4 in Depth, NEMA 4/IP66 NEMA Rating, Continuous Hinged Cover, 10.75 x 4.88 in Panel, Lock: Quarter-Turn Latch, Wall Mounting, Steel, Polyester Powder Painted, Gray
MFG #: A12064CHFL

EECO #: HOA12064CHFL

Brand: nVent HOFFMAN
UPC #: 783510148843
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
UNSPSC
39121324
Material
Steel
Application
For the convenience of quarter turn latching with an aesthetic, easy-to-maintain light gray textured finish
Mounting Type
Wall
Depth
4
Width
6
Height
12
Series
A51FL
Cover Type
Continuous Hinged
Panel Size
10.75 x 4.88
Features
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External welded on mounting brackets for easy installation
  • Oil-resistant gasket
  • Seamless foam in place gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6 x 4 in (152 x 102 mm) and larger
