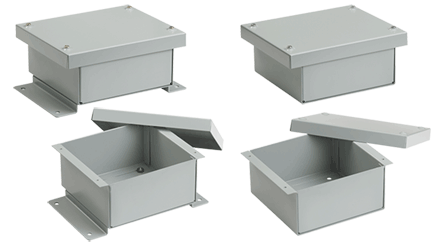

nVent HOFFMAN A10R104HM A90RH Enclosure, 10 in L x 10 in W x 4 in D, NEMA 3R/IP32 NEMA Rating, Steel

Short Description

Use this enclosure as a wiring, junction or pull box for outside horizontal mounting applications such as rooftops or pads. Vertical structure for mounting is not required.

nVent HOFFMAN Enclosure, Series: A90RH, 10 in Length, 10 in Width, 4 in Depth, NEMA 3R/IP32, Screw Cover, Surface Mount, Steel, Galvanized, Gray
MFG #: A10R104HM

EECO #: HOA10R104HM

Brand: nVent HOFFMAN
UPC #: 783510153557
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Galvanized
Length
10
UNSPSC
39121303
Material
Steel
Application
For used as a wiring, junction or pull box for outside horizontal mounting applications such as rooftops or pads
Mounting Type
Surface
Depth
4
Width
10
Series
A90RH
Cover Type
Screw
Features
  • The screw cover is the drip shield providing 3/4 in overhang on each side for outdoor protection
  • No gasketing
  • Screw locations on cover are embossed
  • Enclosure body flange is formed outward
  • Mounting holes on back for direct mounting through the back-to strut or mounting surface, vertical structure for mounting not required
  • 16 or 12 ga galvanized steel
  • Galvanized/polyester powder painted over pretreated surfaces
