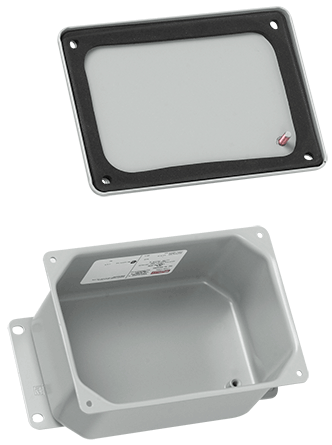

Hoffman A1045DSC Contoured Junction Box, 10-1/4 in H x 4 in W x 3-3/4 in D, Dome Screw Cover, NEMA 4/IP66 NEMA Rating, Steel

Short Description

An economical solution for a broad range of electrical and terminal wiring applications that don't require a back panel, this enclosure features aesthetic, rounded corners and is available in flat and dome cover models for mounting flexibility.

Hoffman Junction Box, Contoured, Series: A51DR, 10-1/4 in Height, 4 in Width, 3-3/4 in Depth, NEMA 4/IP66 NEMA Rating, Dome Screw Cover, 141.2 cu-in Capacity, Wall Mounting, Steel, Polyester Powder Painted, Gray
MFG #: A1045DSC

EECO #: HOA1045DSC

Brand: nVent HOFFMAN
UPC #: 783510573904
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
UNSPSC
39121303
Material
Steel
Application
For providing an economical solution for a broad range of electrical and terminal wiring applications that don't require a back panel
Mounting Type
Wall
Type
Contoured
Depth
3-3/4
Width
4
Height
10-1/4
Series
A51DR
Capacity
141.2
Cover Type
Dome Screw
Features
  • Drawn 16 ga steel, no welded seams or sharp corners
  • Cover screws, formed flanged cover, oil-resistant gasket, external wall mounting brackets
  • Bonding provision on flat cover, grounding nut in body
  • This enclosure features aesthetic, rounded corners
