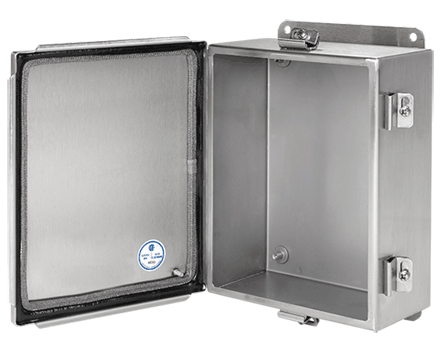

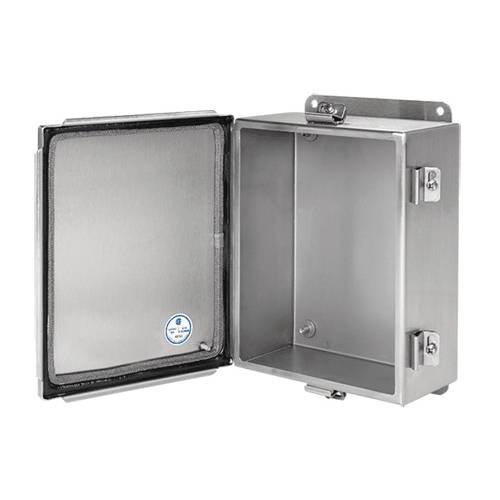

Hoffman A1008CHEMCSS Type EMC Junction Box, 10 in H x 8 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Hoffman A1008CHEMCSS Type EMC Junction Box, 10 in H x 8 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Hoffman A1008CHEMCSS Type EMC Junction Box, 10 in H x 8 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Hoffman A1008CHEMCSS Type EMC Junction Box, 10 in H x 8 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Share Share Print Print
nVent

Hoffman A1008CHEMCSS Type EMC Junction Box, 10 in H x 8 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

Use this enclosure in corrosive indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.

Hoffman Junction Box, Type EMC, Series: A51SE, 10 in Height, 8 in Width, 4 in Depth, NEMA 4X/IP66 NEMA Rating, Continuous Hinged/Screw Clamp Cover, 8.75 x 6.88 in Panel, Wall Mounting, 304 Stainless Steel, #4 Smooth Brushed
MFG #: A1008CHEMCSS

EECO #: HOA1008CHEMCSS

Brand: nVent HOFFMAN
UPC #: 783510258191
Attributes
Features
Documents
Product Information
Attributes
Finish
#4 Smooth Brushed
UNSPSC
39121303
Material
304 Stainless Steel
Application
Used to corrosive indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
Mounting Type
Wall
Type
Type EMC
Depth
4
Width
8
Height
10
Series
A51SE
Cover Type
Continuous Hinged/Screw Clamp
Panel Size
8.75 x 6.88
Features
  • Seams continuously welded and ground smooth
  • Seamless foam in place gasket adjacent to monel mesh assures watertight, dust tight and EMI seal
  • Stainless steel screws and clamps
  • Removable door with continuous hinge
  • Weldnuts provided for mounting optional panels and terminal kits
  • Bonding provision on door
