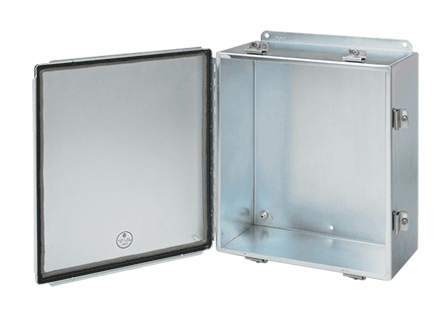

Hoffman A1008CHEMC Type EMC Junction Box, 10 in H x 8 in W x 4 in D, Continuous Hinged/Screw Clamp Cover, NEMA 12/IP54 NEMA Rating, Steel

Short Description

This enclosure is used in indoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.

Hoffman Junction Box, Type EMC, Series: A53, 10 in Height, 8 in Width, 4 in Depth, NEMA 12/IP54 NEMA Rating, Continuous Hinged/Screw Clamp Cover, 8.75 x 6.88 in Panel, Wall Mounting, Steel, Zinc Plated
MFG #: A1008CHEMC

EECO #: HOA1008CHEMC

Brand: nVent HOFFMAN
UPC #: 783510541507
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
UNSPSC
39121324
Material
Steel
Application
Used in indoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
Mounting Type
Wall
Type
Type EMC
Depth
4
Width
8
Height
10
Series
A53
Cover Type
Continuous Hinged/Screw Clamp
Panel Size
8.75 x 6.88
Features
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • Combination woven steel mesh and oil-resistant gasket
  • Stainless steel screw-down door clamps
  • Weldnuts provided for mounting optional panels and terminal kits in size 6 x 4 in (152 x 102 mm) and larger
  • Shielding effectiveness greater than 80 dB at 1 GHz
